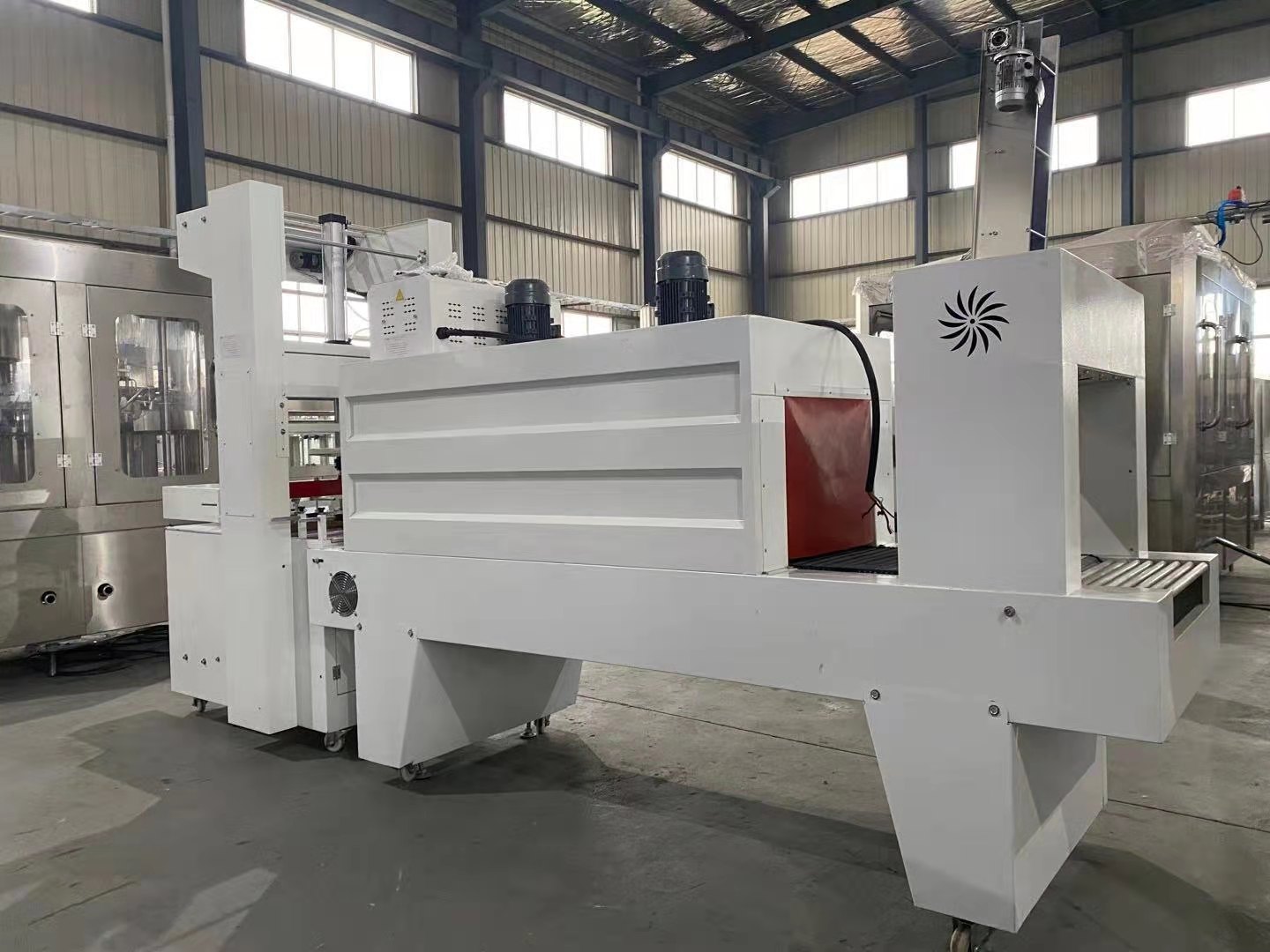

Semi Auto PE Film Wrapping Machine


Availability:

Quantity:



Inquire

Shrink wrapping machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the Germany advanced technology ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine.

Wrapping Machine Automatic Heat Shrink Wrapping Machine Automatic For POF PVC Film PET Bottle Carton Box Heat Tunnel Shrink Wrapping Packing Machine Commercial Automatic L Bar Sealer Shrink Wrapping Packing Machine and Shrink Heat Tunnel Automatic Flow Packing Wrapping Machine PE Film Heating Shrink Stretch Wrapping Packing Machine Semi- Automatic water pet bottle PE film heat tunnel shrink packing machine Automatic PE plastic film sleeve shrink wrapping machine heat shrink tunnel wrap packaging machine

Product Description

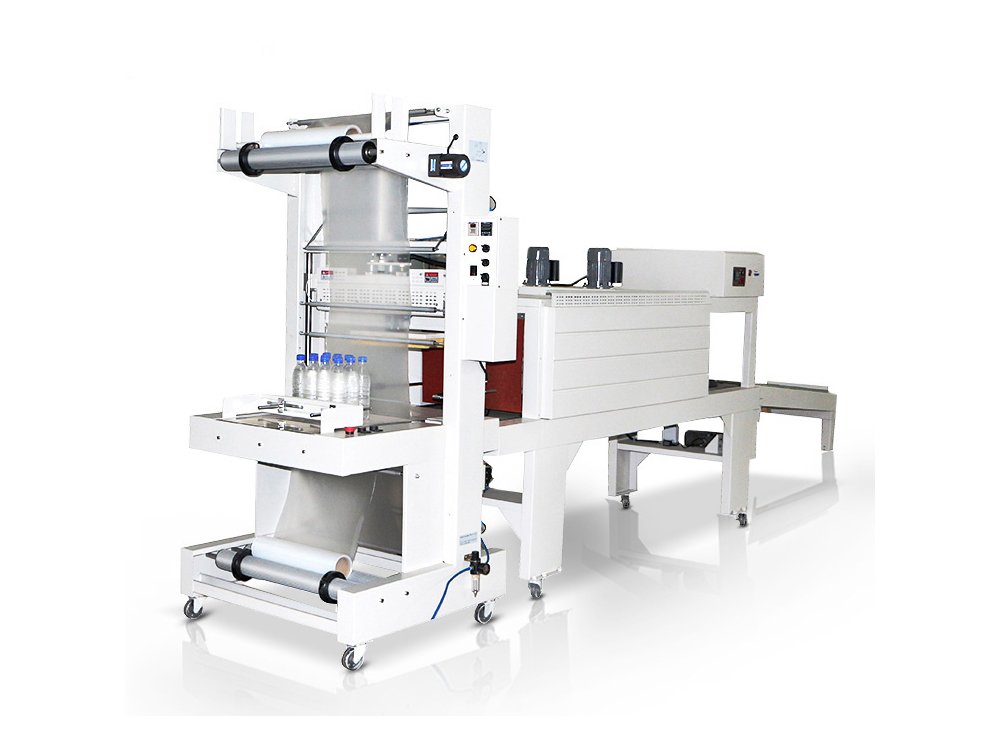

Semi Auto Wrapping Machine

Semi Automatic PET Bottle Small Heat Shrink Sleeve Wrapper Wrapping Machine
Packing Speed	5-8Packs/Min	Max Pack Size	500(W)x350(H)mm
Applicable Film	Polyethylene(PE) Film	Max Film Thickness	100Micro
Shrink Wrapper
Max Film Width	600mm	Bottom Film Feeding Motor	220V 50/60HZ 1PH 25W
Sleeve Wrapper Dimension		1040x930x1930mm
Sleeve Wrapper Electric Supply		220V 50/60HZ 1PH 1.50KW
Top Film Feeding Motor		220V 50/60HZ 1PH 25W

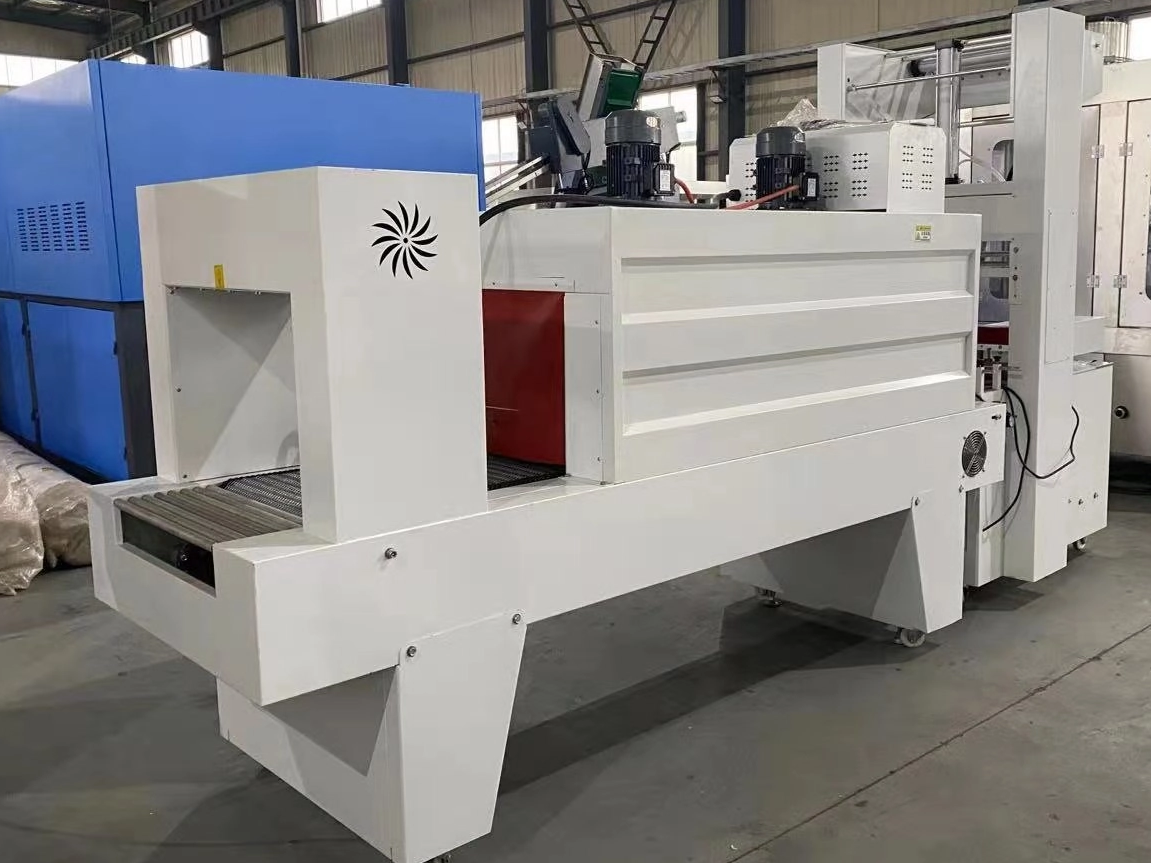

Shrink Tunnel
Shrink Tunnel Heater		380V 50/60HZ 3PH 18.40KW
Conveyor Motor	220V 50/60HZ 1PH 90W	Shrink Tunnel Opening	550mm(W)x400mm(H)
Shrink Tunnel Chamber	1500x550x400mm	Shrink Tunnel Dimension	2500x800x1480mm
Reciriculation Blower		220V 50/60HZ 1PH 120W(60Wx2)
Idle Roller Conveyor
Dimension		1200x550x720mm
