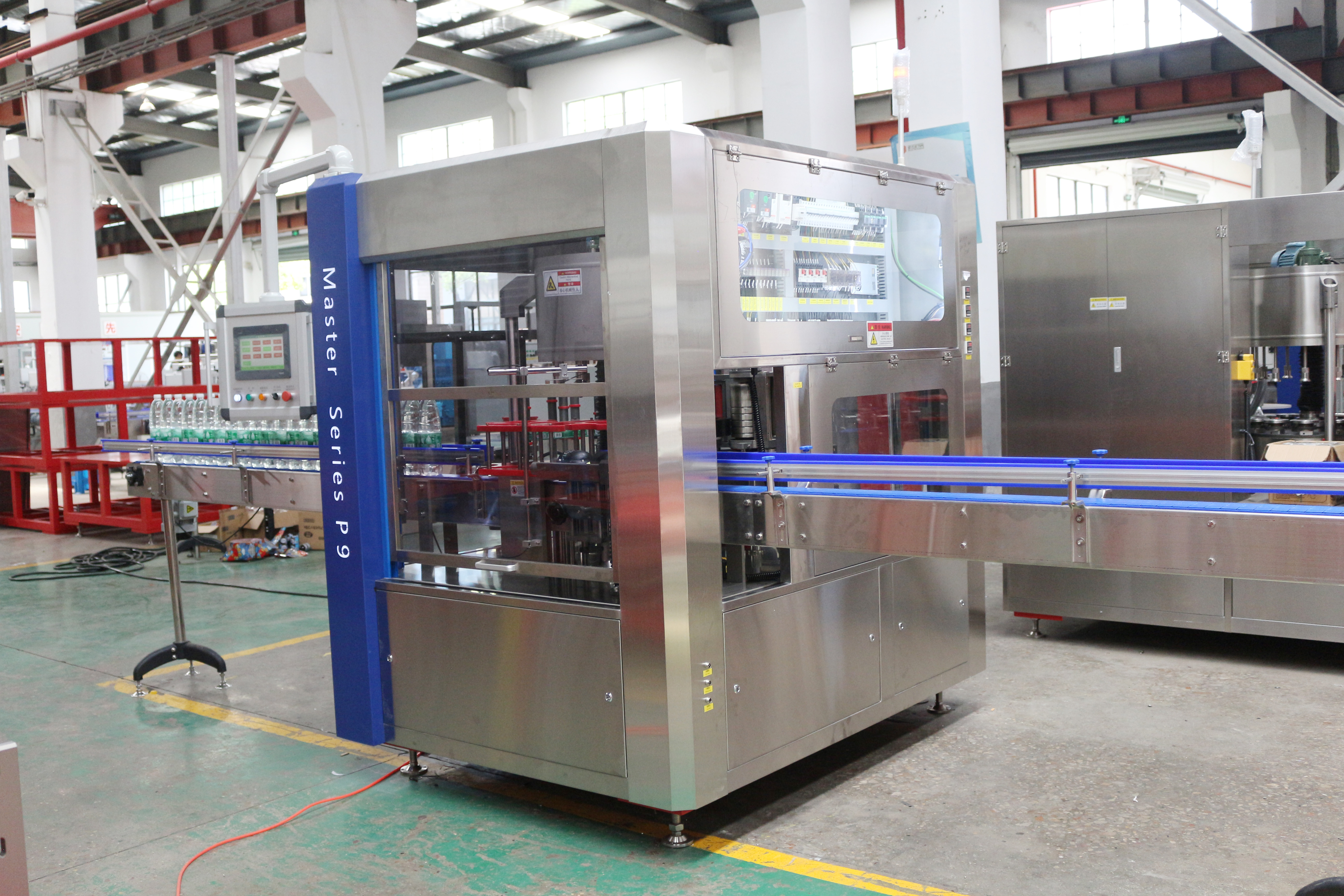

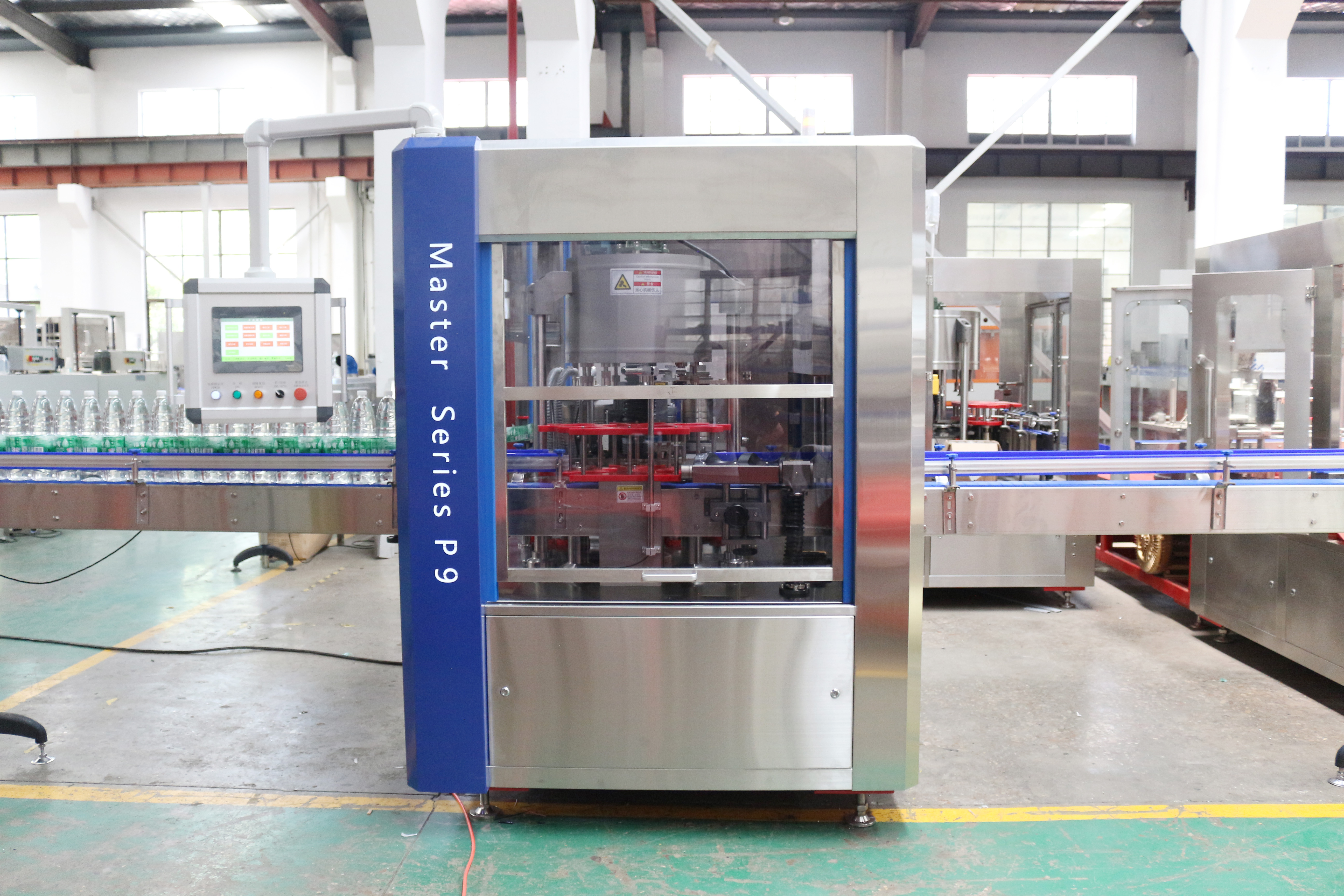

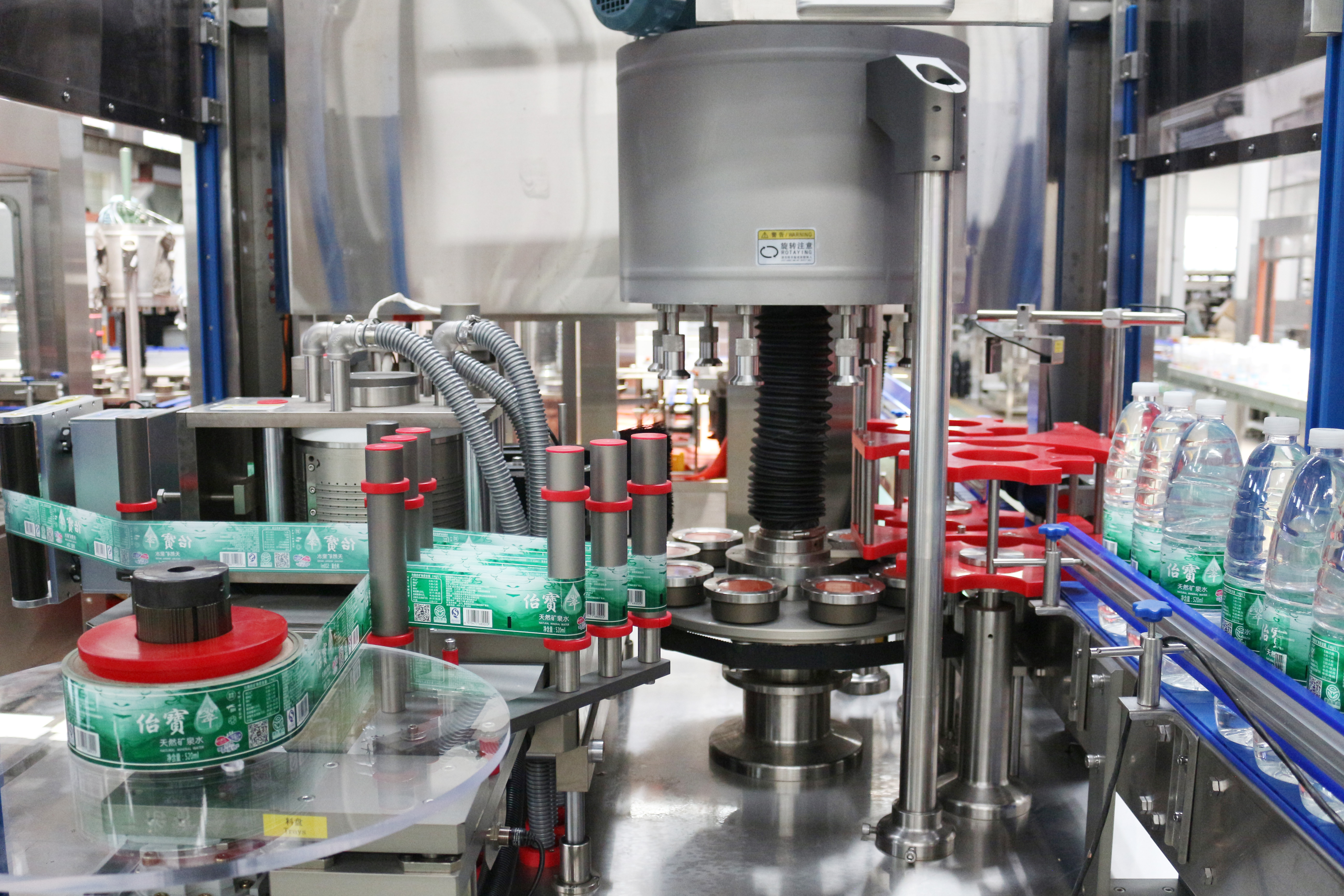

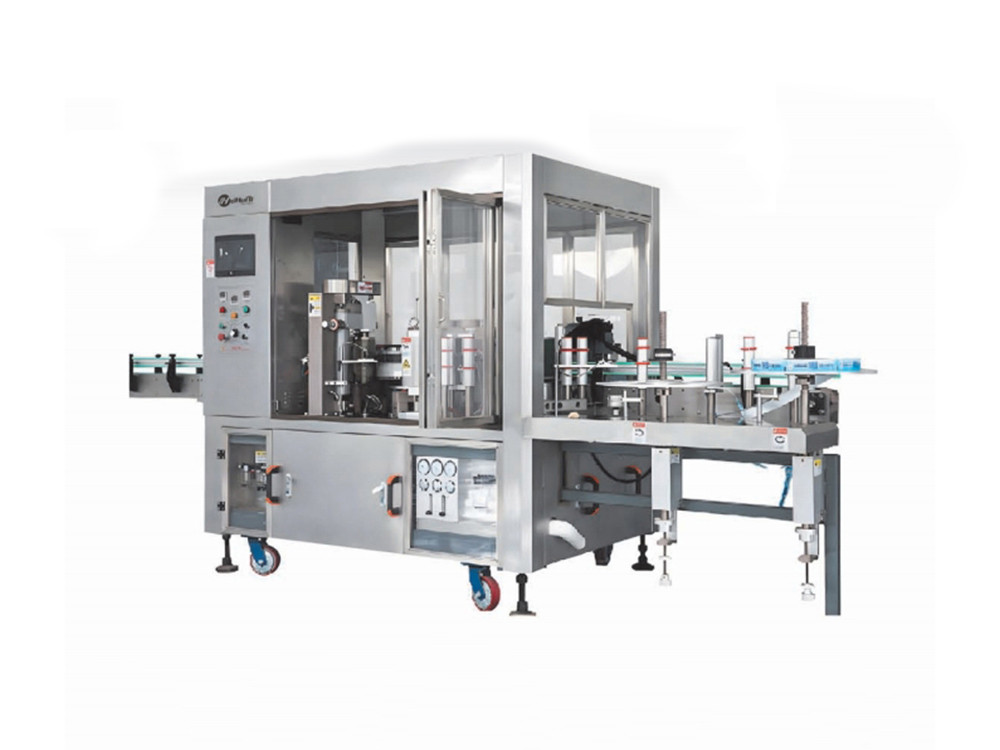

Automatic OPP BOPP label film applicator hot melt Glue labeling machine

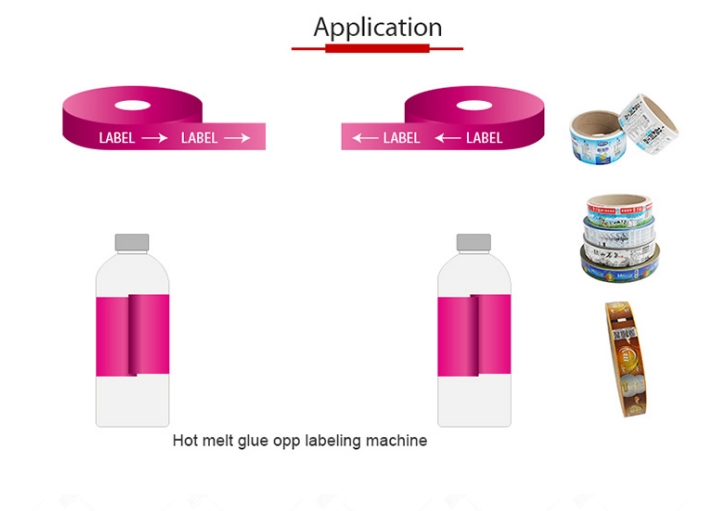

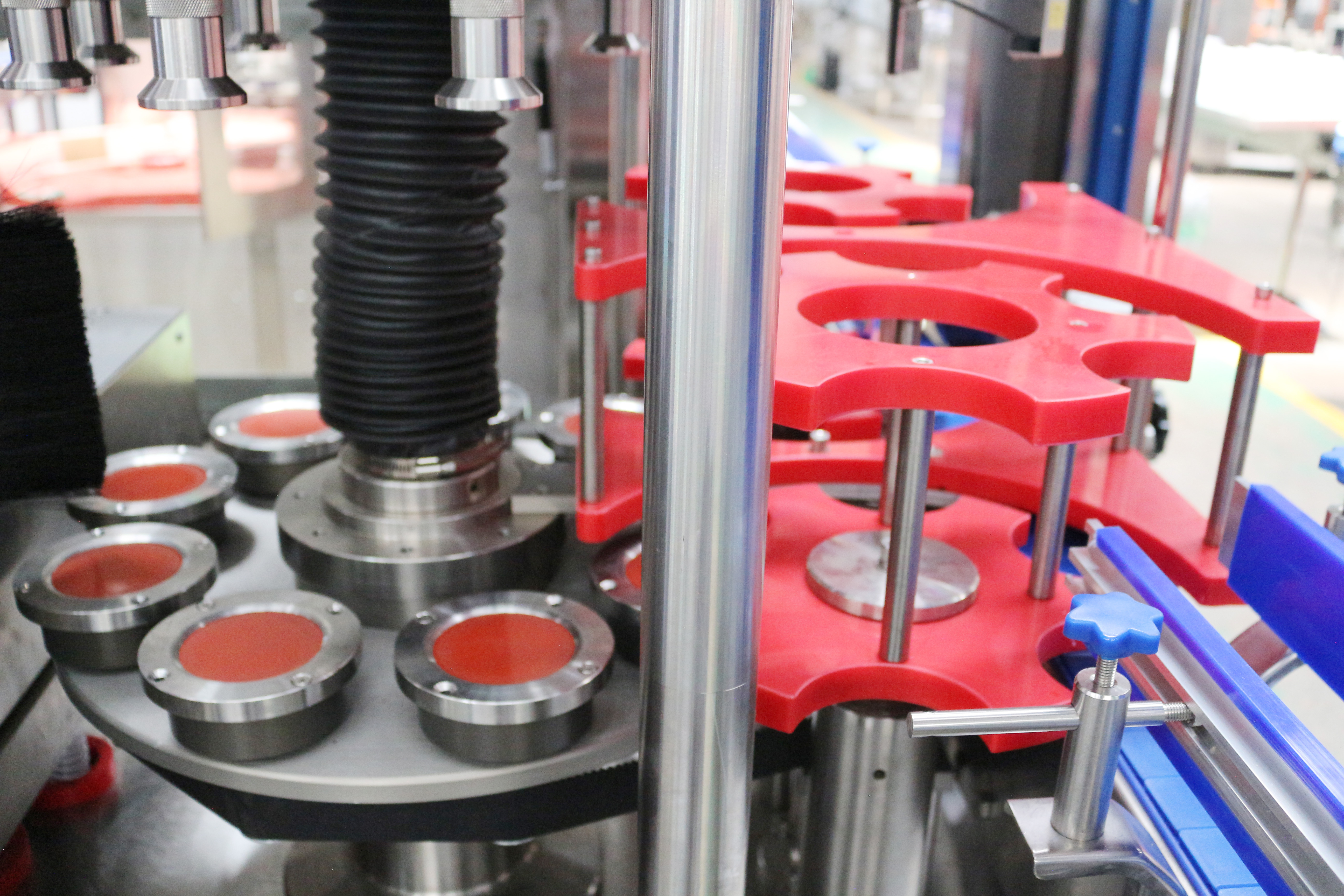

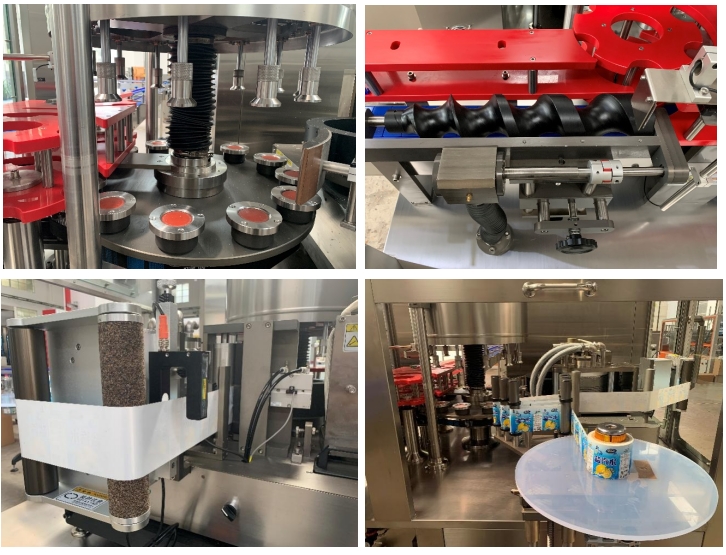

This equipment adopts transporting device of fully automatic helicoid. The containers come to the machine entry by bottle conveyer chain; then come to bottle entry star wheel by separating screw distance. The containers clamped by the star wheel come to the cross of the circled plate, the device of up-pressing bottle and down-holding bottle matches the fixed container, moving on the helicoid plate to complete the labeling process. Then passing from the bottle exit star wheel, complete the whole process of container transportation. Hot melt glue is conveyed to the glue roller by glue pump in the glue box, the glue will be scraped into a certain thickness film by glue scraper. When the label passing, the glue will attached on it. The label will be transported to the label cutting roller from the label plate under the servo motor device.
Item | Data |
Transportation Structure | 750W TRANSTECNO ac motor (with TRANSTECNO reducer), frequency converter speed regulation; Industrial nylon chain plate conveyor belt |
TRANSTECNO motor 2.2Kw (with deceleration by TRANSTECNO) | |
Bottle Separation structure | Feed screw |
Bottle Feeding structure | With the feed screw and star wheel position feeding structure to ensure the accuracy and stability of loading |
Position structure | Mechanical pre-location, using the cam wheel institution to planish the bottle for label positioning |
Labeling structure | Rotary type bottle tray carries the bottles, label during rotation |
Label feeding structure | high speed servo OPP label supply system (drive by servo-motor) |
Label pressing structure | Arc shape brush unit |
Bottle guiding structure | adjust by double coordinate section guide rail |
Glue supply system | hot melt glue supply system (German SEIMEC control system) ensures the accuracy and uniformity of gluing |
Safety part of the machinea
1)Safety protection: In order to keep the operator safety, when the machine is running please close the protective doors
2)Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out
3)Lack of bottle alarm: When lack of the bottle the machine will stop and make an alarm. The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production
4)Leak of labeling alarm: To control the quality of labeling
5)Pressure testing: When the pressure cannot meet the equipment requirement, the machine will stop to against bad products produce
6)Vacuum testing: When the vacuum cannot meet the equipment requirement, the machine will stop to against bad products produce
7)Temperature testing: When the temperature cannot meet the equipment requirement, the machine will stop to against bad products produce
No. | Item | Data |
1 | Power supply | Three-phase 380V 50 Hz 8000W |
2 | The total length of equipment | 3000mm (conveyor length 3000mm or can be regulate base on your product lines) |
3 | Equipment width | 2500mm |
4 | Conveyor speed | 30m/min (the speed of the transmission lines can be adjusted according to actual production) |
5 | The method of speed adjustment | uninterrupted - adjust rate |
6 | The largest Speed of labels feed | maximum speed of 100 meters labels / min |
7 | The largest speed of labeling | 12000 BPH (330ml) |
8 | Labeling accuracy | ± 1mm |
9 | Integrated Labeling accuracy | ± 1mm |
10 | Product Size | 500ml |
11 | Maximum label width | 150mm |
12 | The maximum length of label | 500mm |
13 | The maximum diameter of label | 600mm |
14 | Paper core diameter | 152 mm |
15 | Labeling glue | leading and trailing edge gluing with hot melt |
16 | Gluing temperature | 120~160℃ |
17 | Type of label | OPP label 、paper-plastic composite film label、paper label |
18 | Labeling workstation | 12 per cycle |
19 | Mold | Each set of molds include infeed screw, infeed star wheel, discharge star wheel, bottle tray and so on) |
20 | Machine weight | about 3000 Kg |
