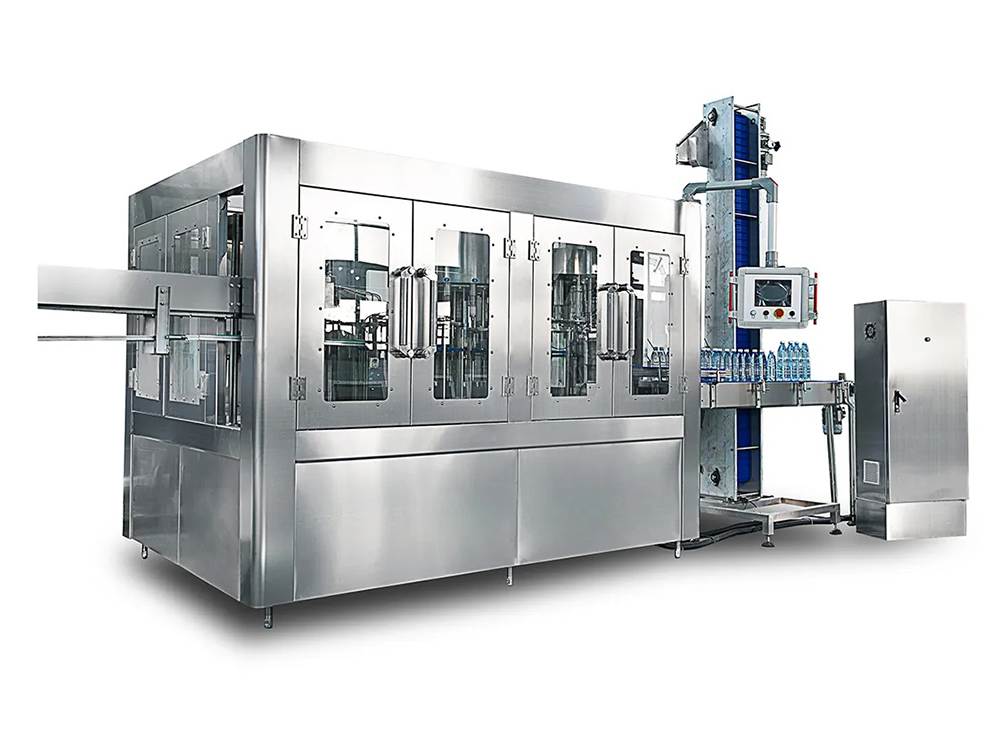

Automatic Three-In-One Filling Machine Equipment - Bottle Washing, Filling, Capping
Filling of water, juice, tea beverages, and carbonated beverages. The filling machine is easy to operate and highly automated. Application scenarios: automatic filling machine, beverage filling machine, mineral water filling production line, filling machine manufacturer.
1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.

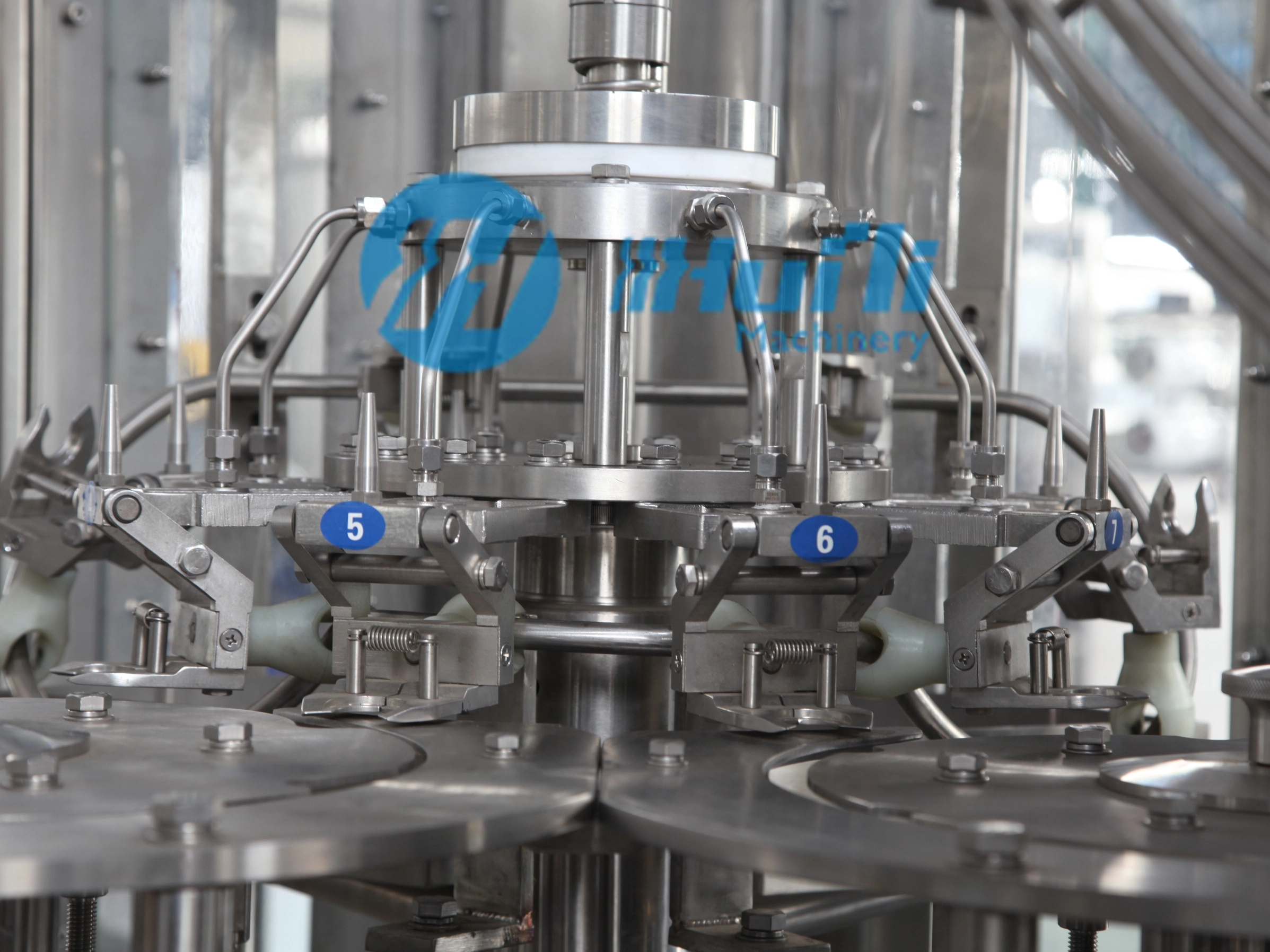

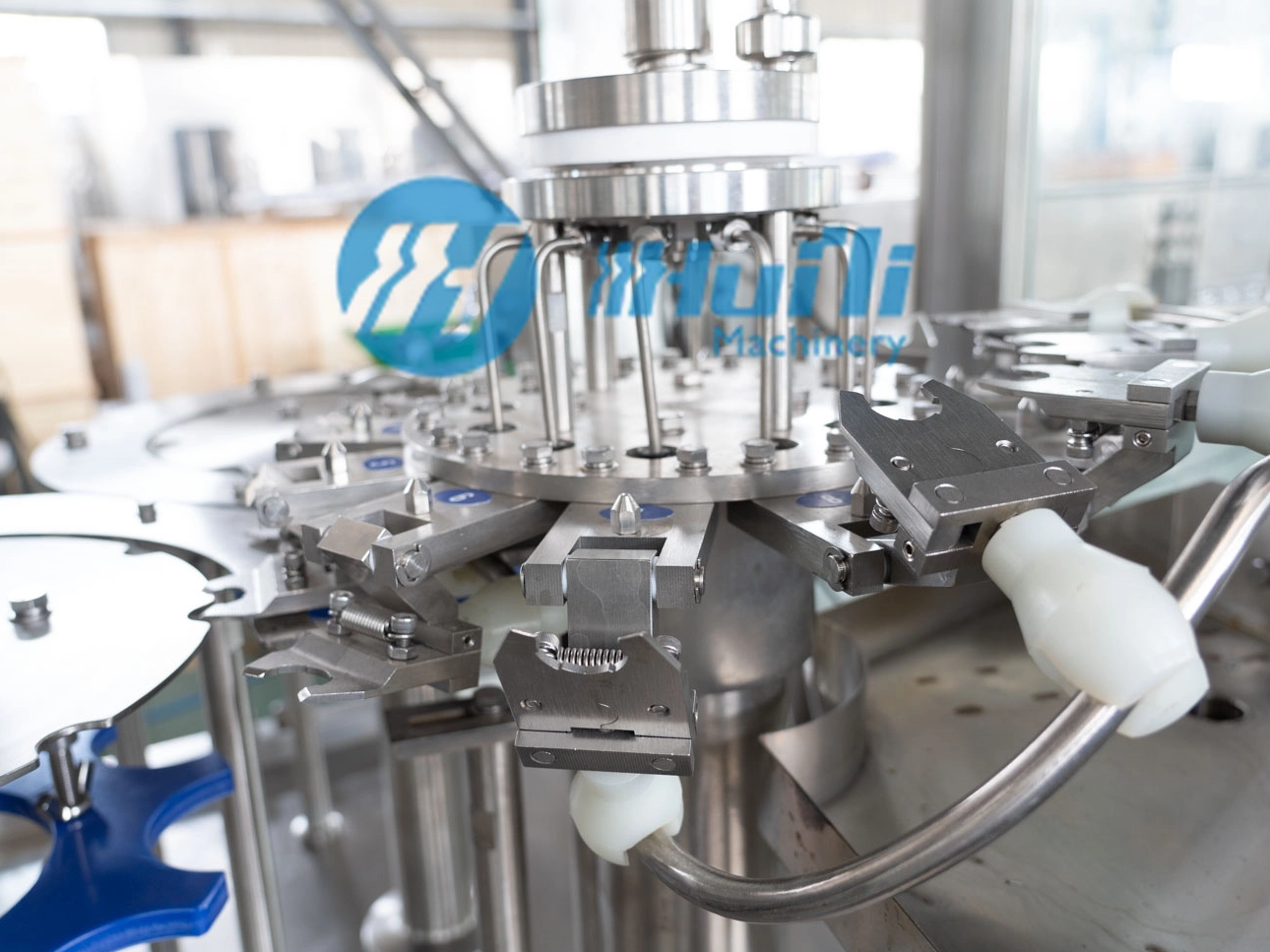

Washing Heads
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304 stainless steel washing pump make the machine more durable.
Filling Heads.
- 304 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

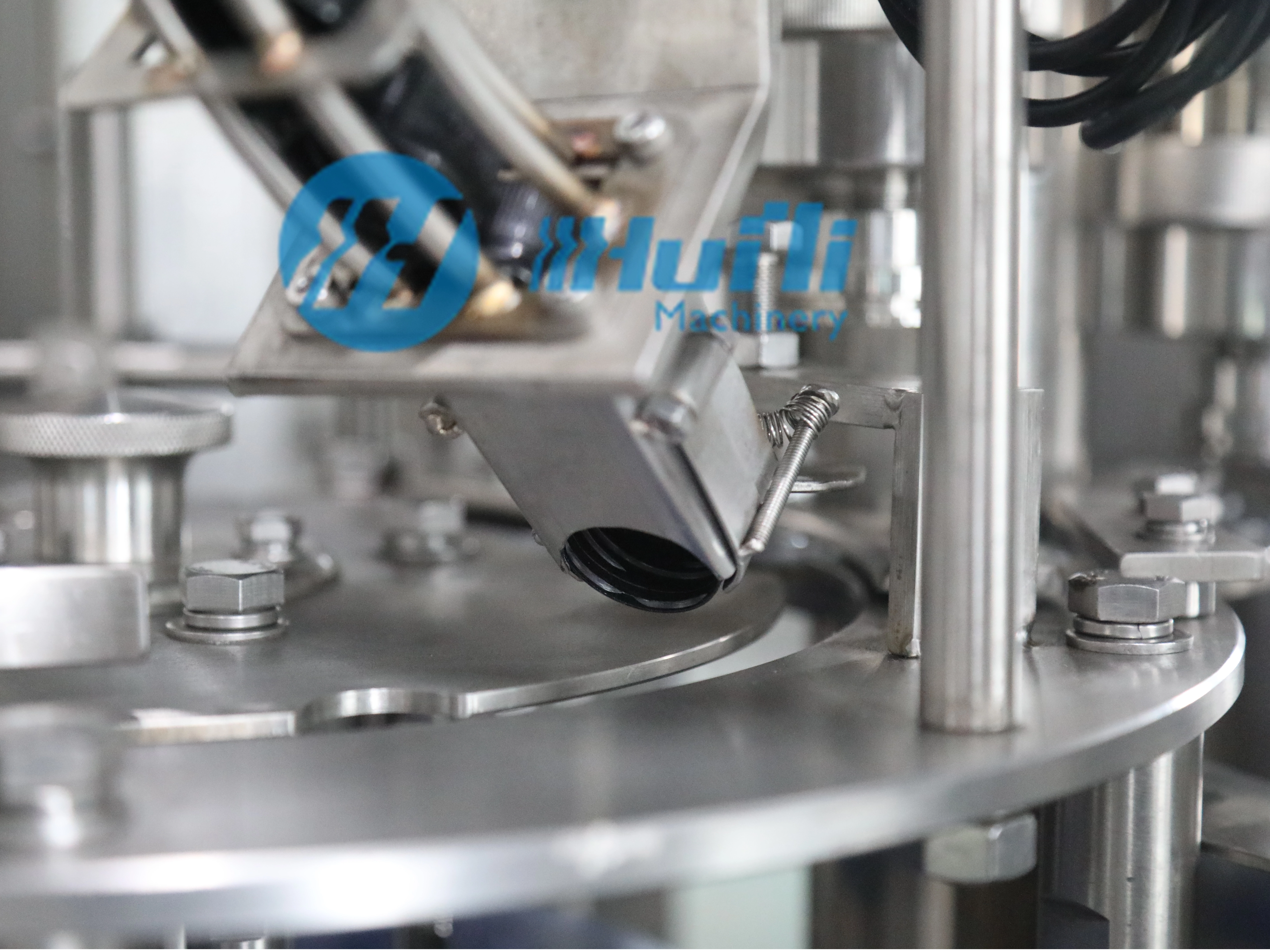

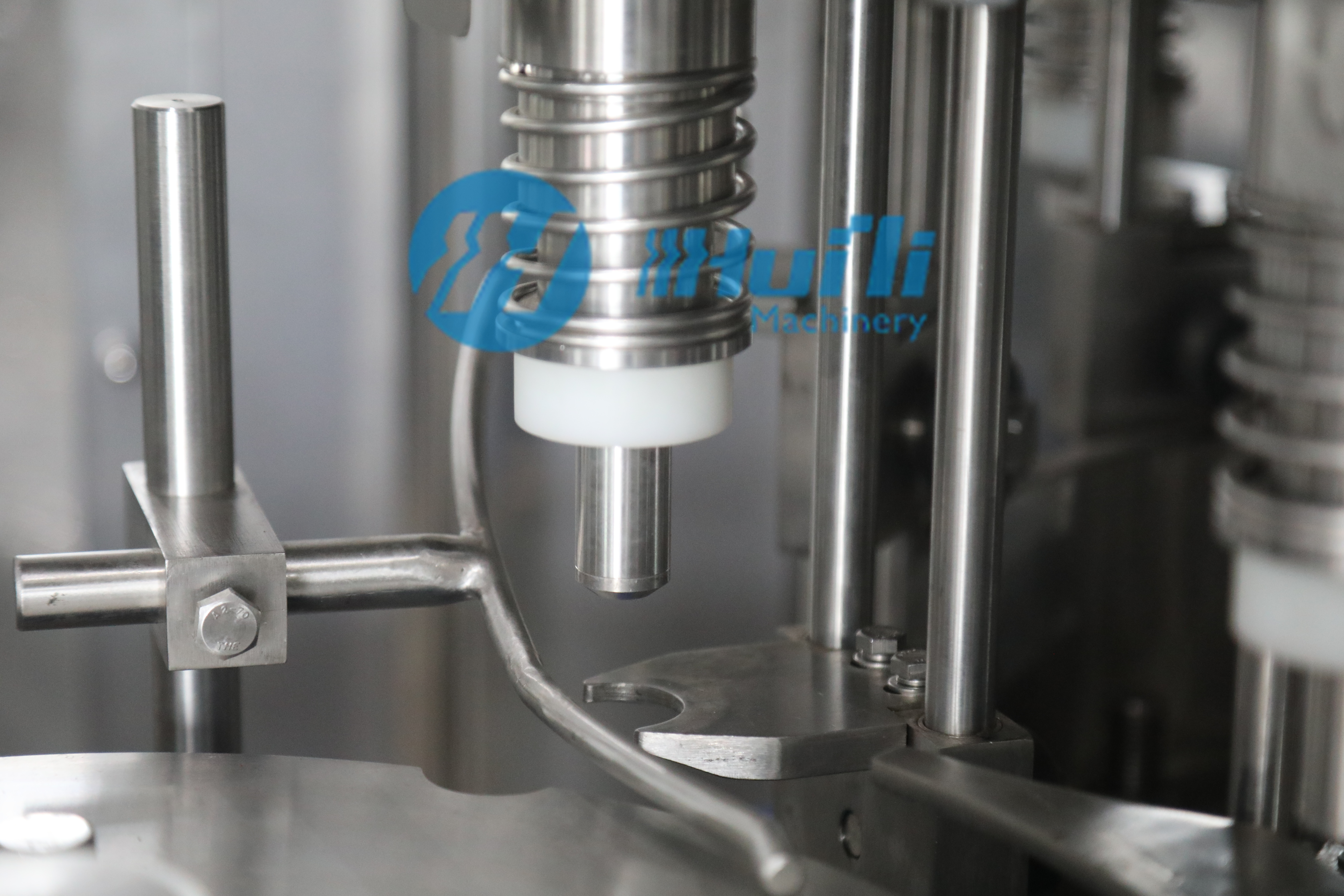

Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Parameter
| Model | CGF 8-8-3 |
| Production capacity | 2000-3000B/H |
| Filling volume | 0.2L-2L |
| Filling heads | 8 |
| Gas pressure (Mpa) | 0.4-0.6 |
| Gas consumption(m³/min) | 0.6 |
| Motor power(kw) | 3.8 |
| Related Voltage(V) | 380V/HZ |
| Size of the machine(mm) | 2500*1800*1900 |
| Weight(kg) | 1500 |
