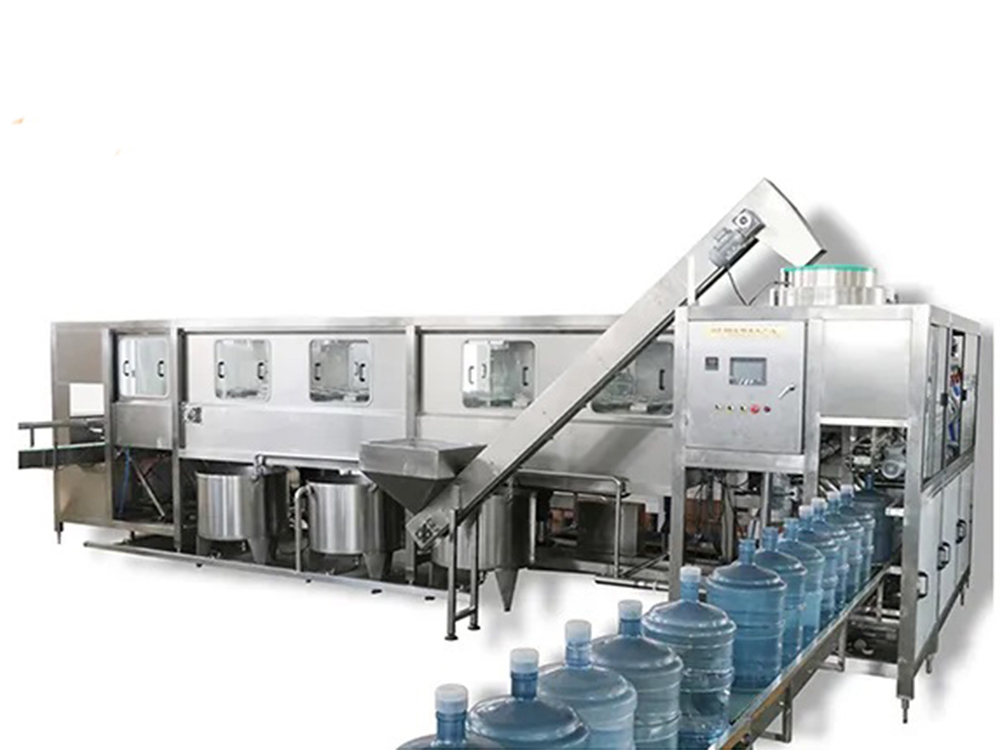

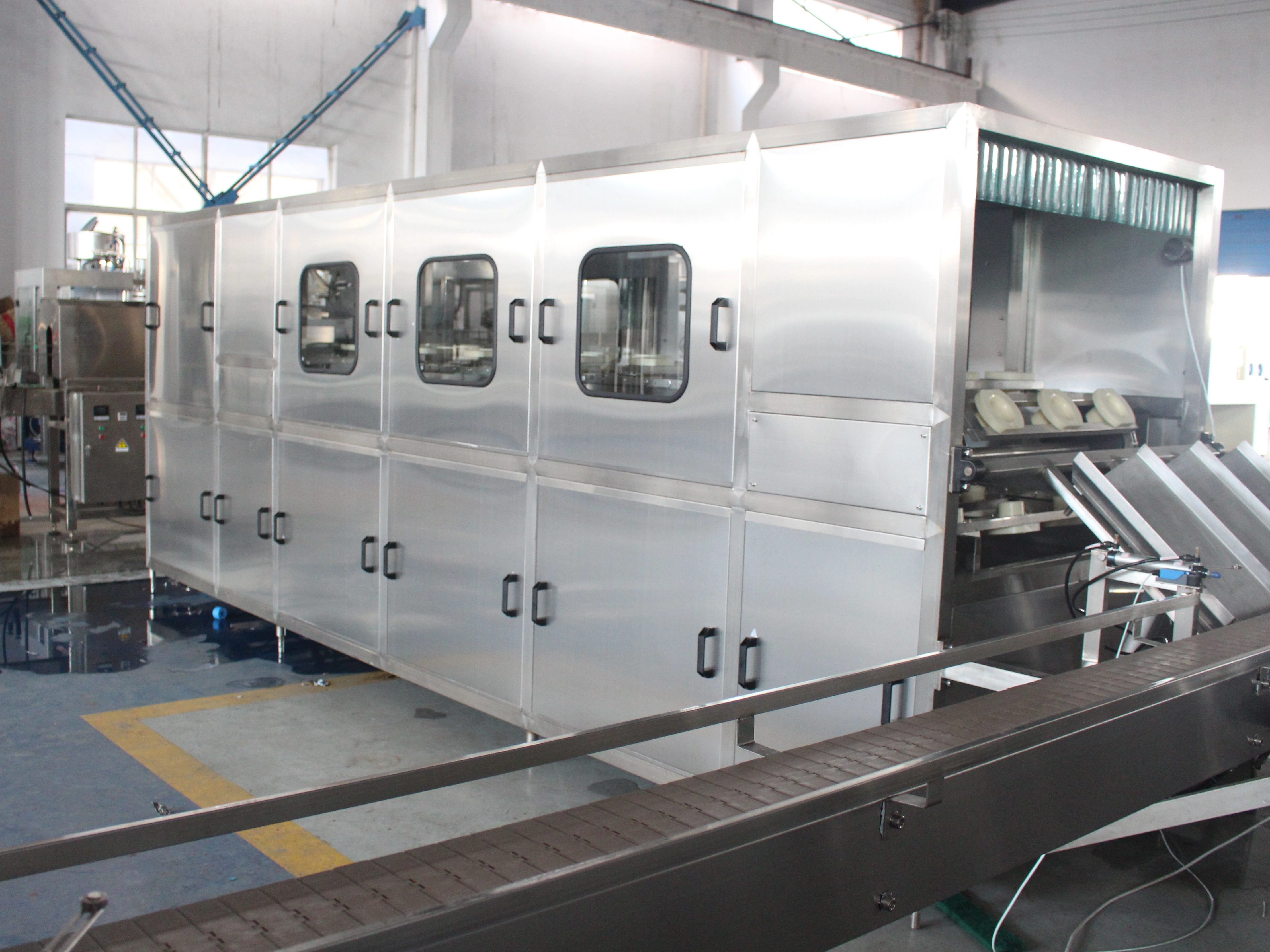

5 Gallon 20L Mineral Drinking Pure Water Bottling Filling Machine

5 Gallon 20L Mineral Drinking Pure Water Bottling Filling Machine

Flow chart :

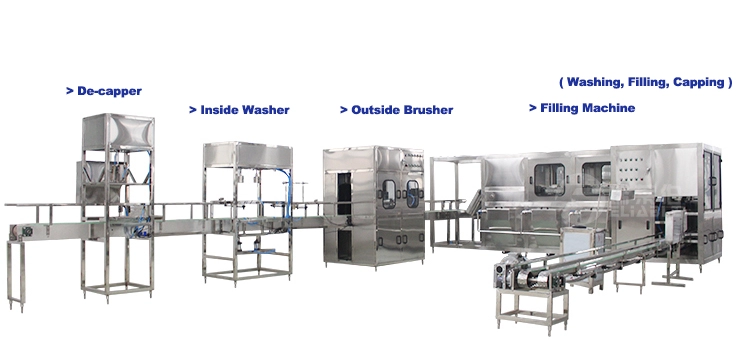

Barrel uploader--> Decapping machine-->Leakage inspector-->External brusher-->Internal brusher-->Automatic Rinsing,filling,capping(3in1) machine-->Light checker-->Cap labeling machine-->Date printerBarrel lifter-->Barrel lifter-->Barrel stacking machine

5 Gallon Filling Machine adopts 380V (220V) 50HZ AC power. The control system adopts advanced programmable control system and pneumatic control system to program the curing method. The high-power digital display is used, and the operator can operate according to the display. Reliable performance, easy operation and easy maintenance.

1. This series of equipment is used in the production of non-gas beverages such as juice, fruit wine, mineral water and pure water in polyester bottles.

2. Integrate rinsing, filling and capping on one machine.

3. Introduce the latest technology from Japan and Italy, adopt the principle of pressure type fixed liquid surface filling, fast filling speed, stable liquid level control and no dripping.

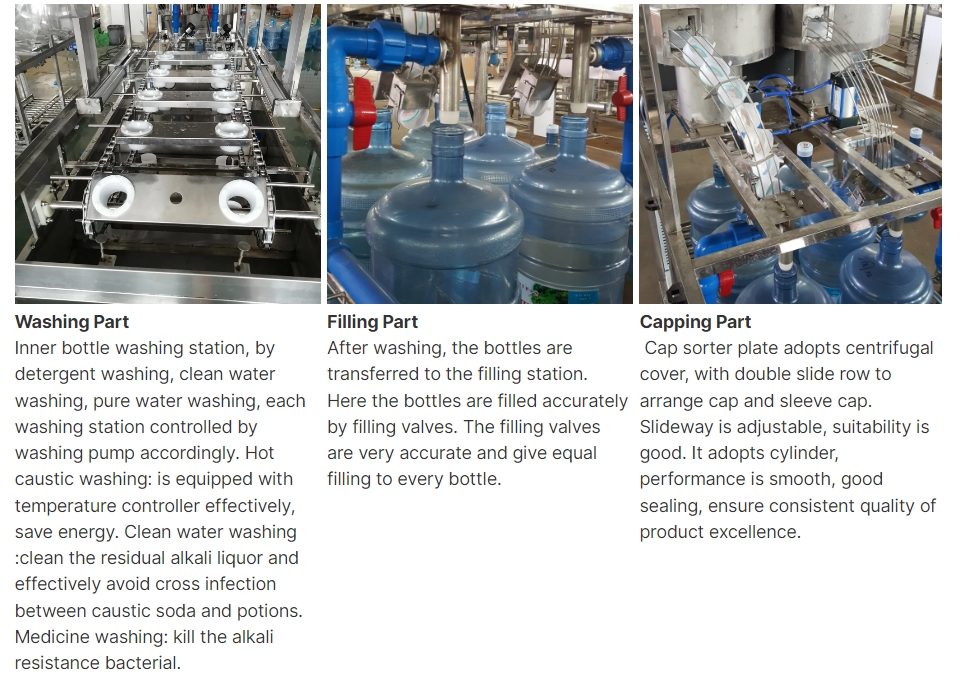

4. Spring-type rinsing pliers hand, the empty bottle automatically rotates 180° with the track, and the inner and outer two rinsing, the rinsing efficiency is high.

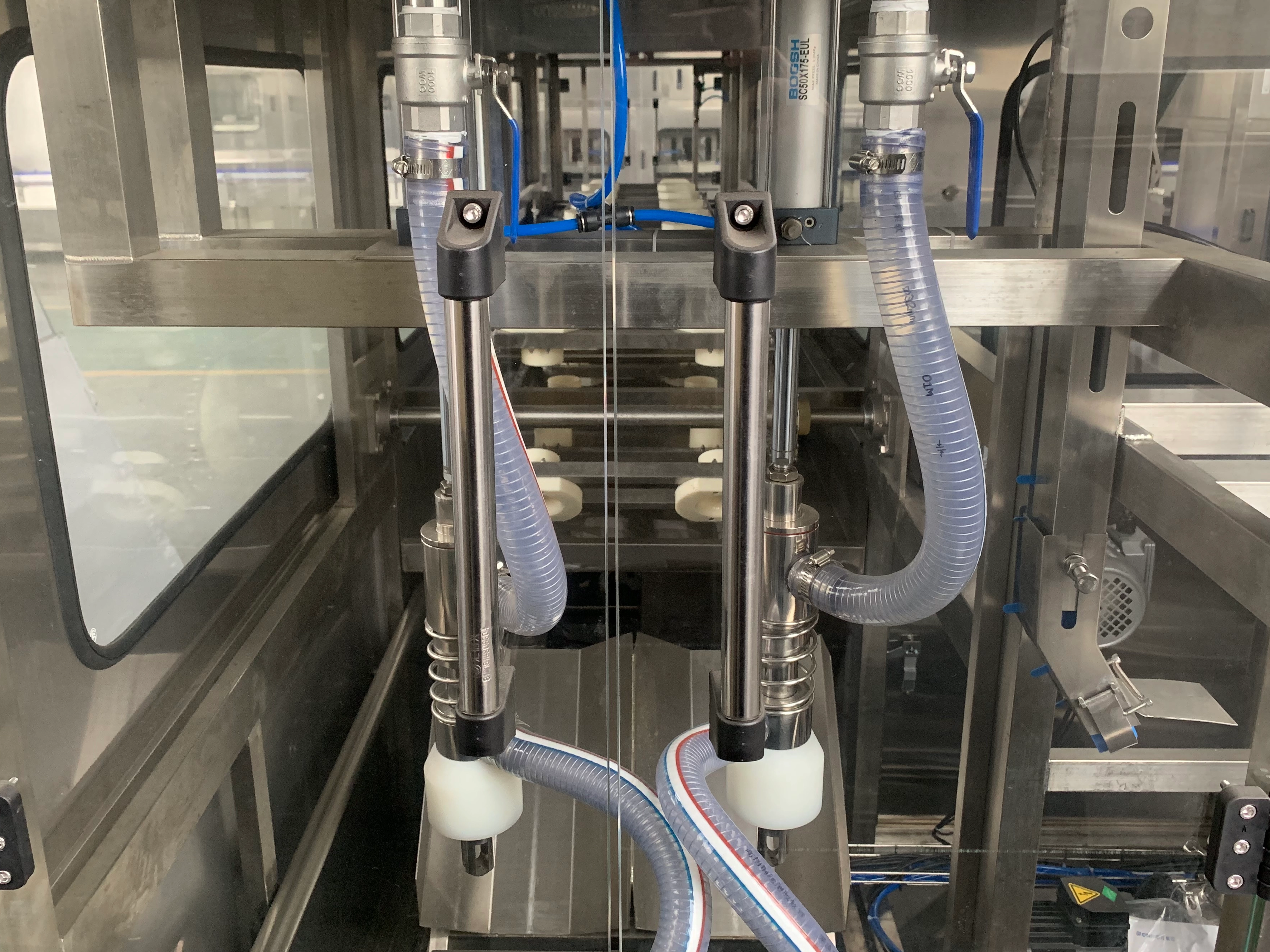

5. 5 Gallon Filling Machine adopts magnetic torque type capping head to realize the function of gripping and screwing. The capping torque is steplessly adjustable, and has the function of constant torque screwing and capping, and does not damage the cap, and the sealing is strict and reliable.

6. The whole machine adopts PLC computer program control and human-machine interface touch screen button, which has automatic control of liquid level in material cylinder, no bottle and no can, no bottle and no cover, etc.

7. Stepless speed regulation, digital display of production capacity, and adjustment is extremely convenient.

We are one of the most professional 5 gallon filling machine manufacturers and suppliers in China. Welcome to wholesale high quality 5 gallon filling machine for sale at cheap price from our factory.
