Single Side Adhesive Label Machine


Availability:

Quantity:



Inquire

Widely used in industries such as food, cosmetics, chemicals, pharmaceuticals, etc..suitable for flat surface labeling or self-adhesive film of various items, such as books,folders, boxes, cardboard boxes, etc.

Sticker Labeling Machine Double Sided Adhesive Labeling Machine water bottle can jar sticker orientation wrap around labeling machine Single Side Round Bottle Barrel Labeling Machine Single Side Labeling Machine Single Side Sticker Label Applicator Machine For Plastic Glass Automatic Labeling Machine self adhesive sticker tape single sided flat labeling machine adhesive sticker labeling machine

Product Description

贴标机

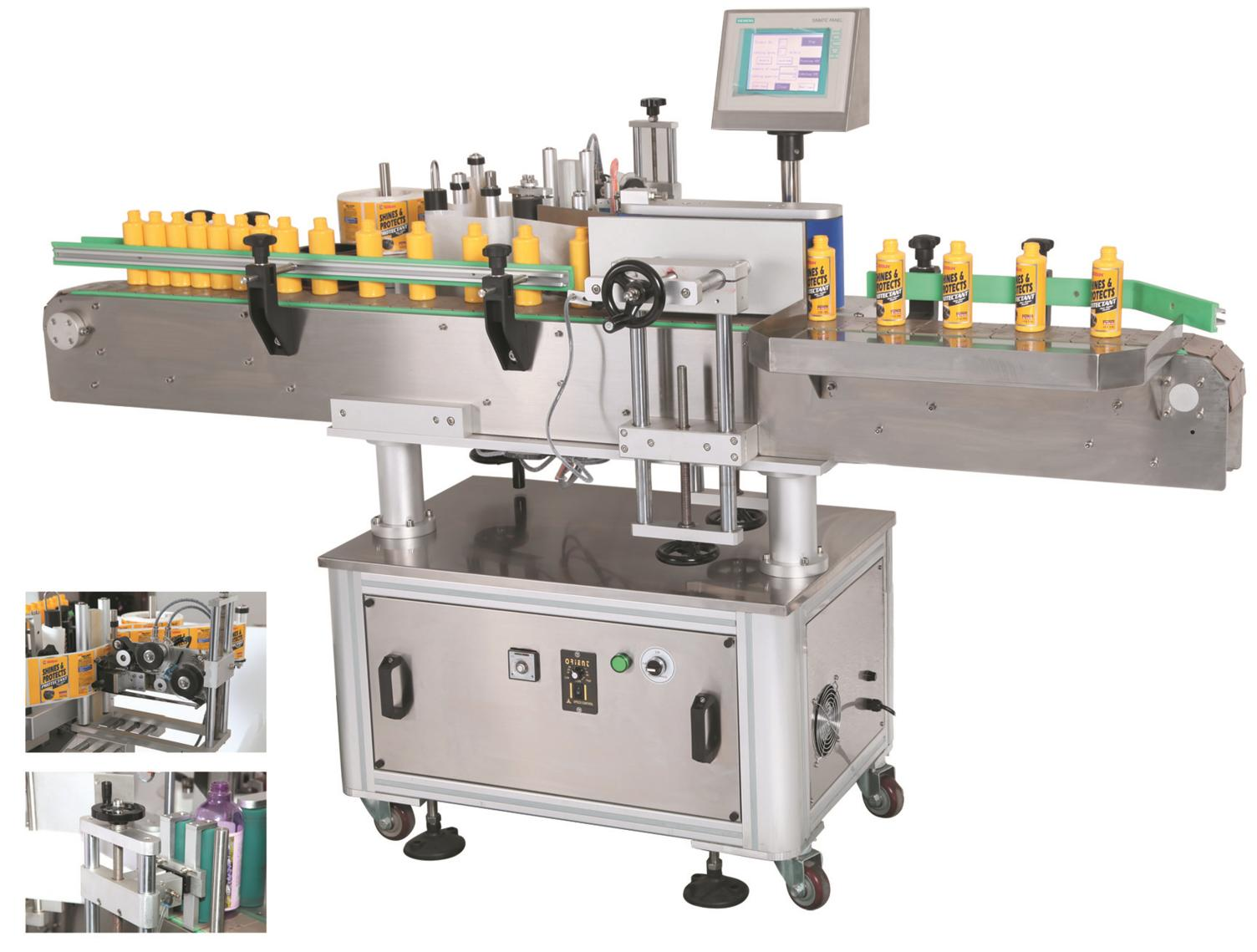

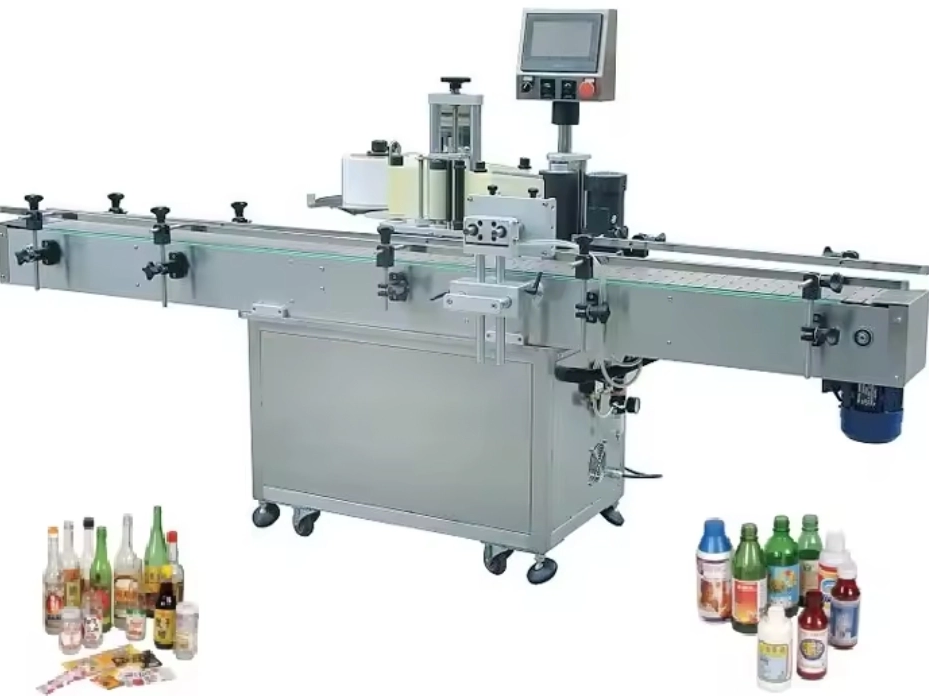

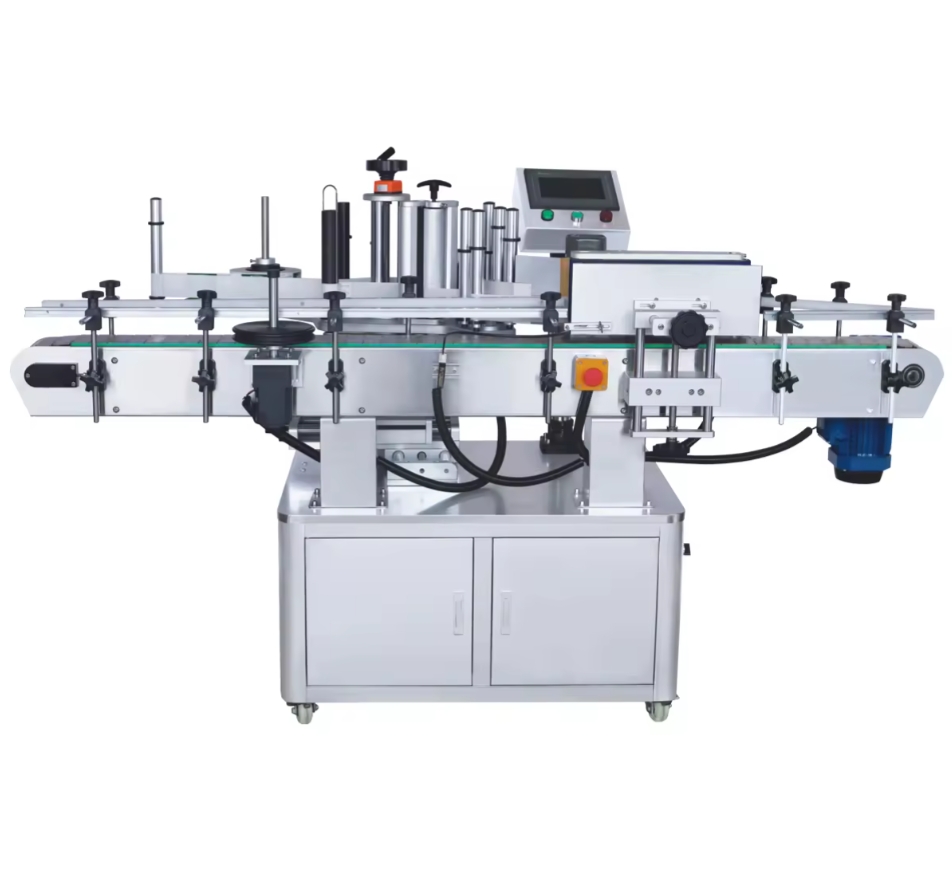

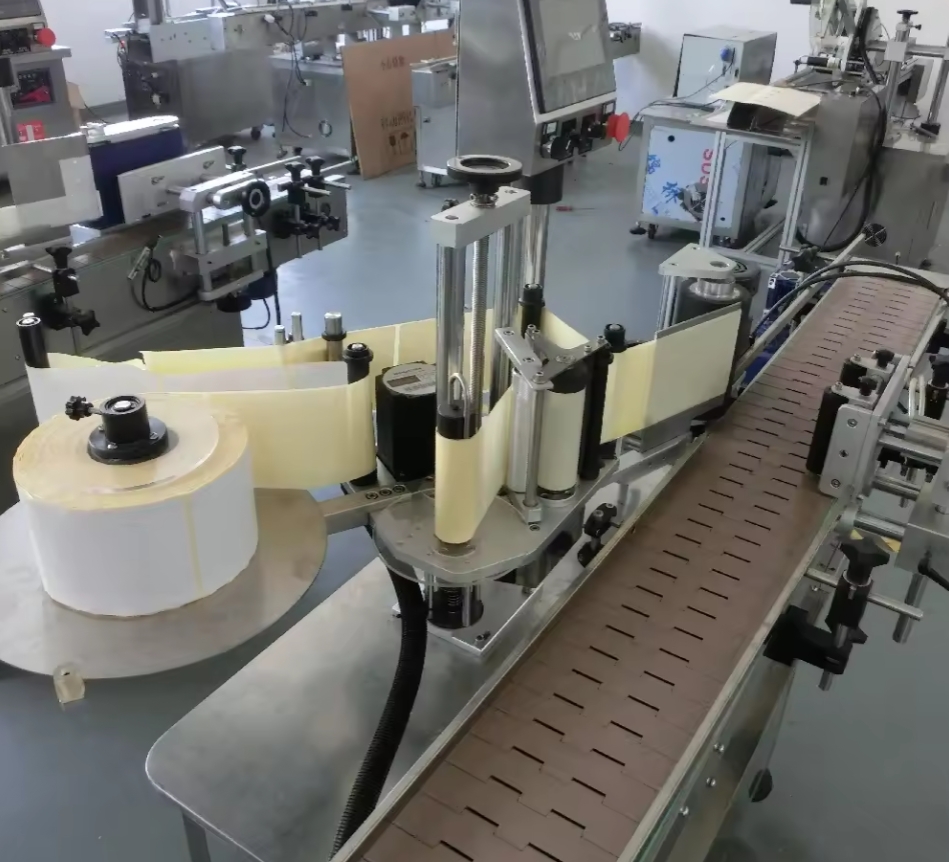

This machine is a Label machine , suitable for labeling cylindrical objects of various specifications, small taper round bottle labeling, can realize full/half round labeling, circular labeling front and back, front and back labeling space can be adjusted arbitrarily;Single label, fixed point label or double label label can be affixed.

Yield Capacity（bottles/min）	50-80(the speed can be adjustable）
Standard label speed（m/min）	3-50meters/min
Applicable label specifications	Glassine paper, transparent or opaque
Dimension（mm）	3000（L）×1000（W）×1850（H）mm
Label roll diameter（mm）	76mm
Outside diameter of label roll（mm）	300mm
Printer to use Air	5kg/cm2
Power（w）	1.0KW
Voltage	AC220V ,50/60HZ
Labeling accuracy	0.5mm to 1mm
Gross weight	350KG

Working principle and structural features:

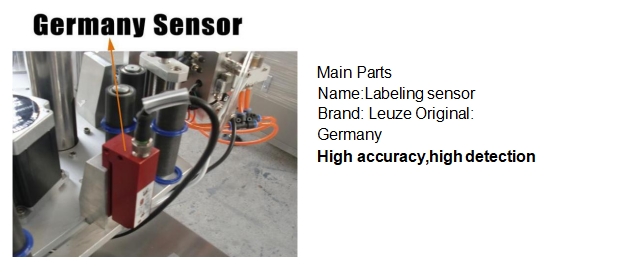

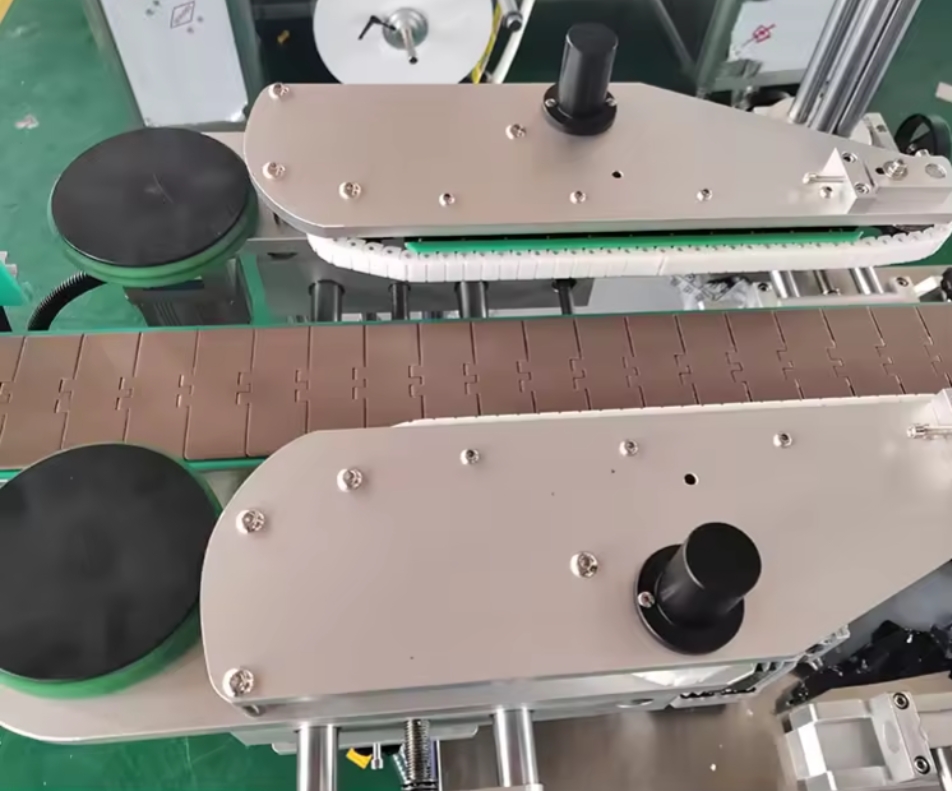

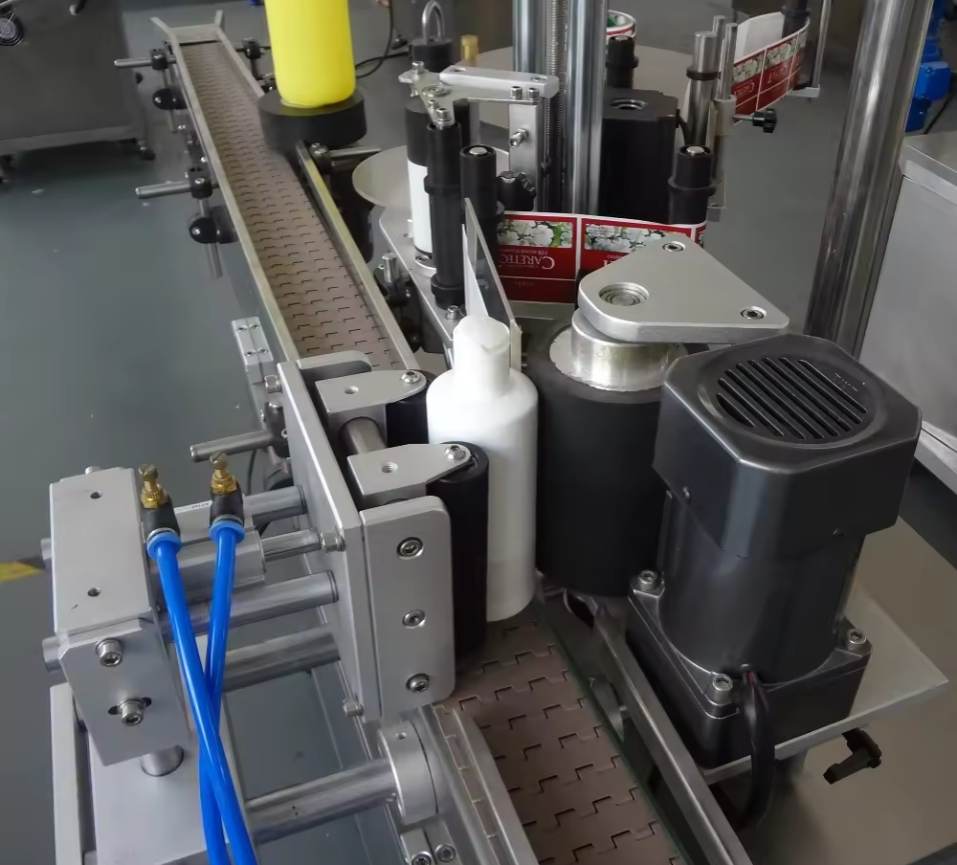

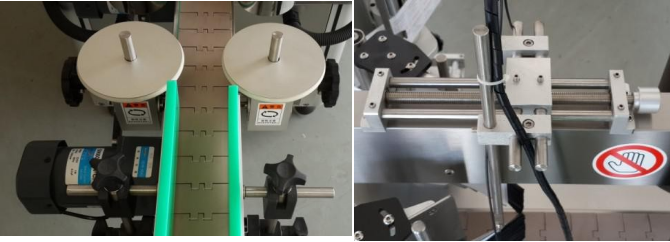

Put different packaging items into the conveyor belt of the labeling machine, and the conveyor belt drives the bottle into the bottle-separating area, and then passes through the calibration mechanism, and then enters the holding mechanism to bring the bottle into the labeling area. After entering the labeling area, the optical fiber detects the bottle and transmits the

photoelectric signal to the PLC. After the PLC processes the output signal, it transmits the output signal to the servo motor, and the servo motor outputs the label. The labeled items are brought into the next process or container by the conveyor belt of the labeling machine.

Operation method:

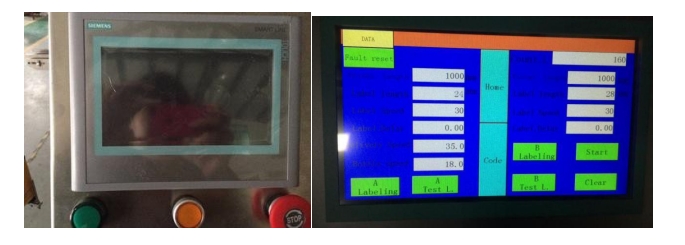

1.Imported touch-type human-machine interface, full Chinese and English display, just follow the instructions on the display, you can easily go online without any experience, greatly shortening the training time of personnel; the production speed can be set arbitrarily, and the production can be automatically adjusted Speed, can match the speed of any production line for the most efficient production operation.
2.If there is any abnormal failure: if the label is used up, the tape is broken, the ribbon is used up, the counting setting is reached, the machine is abnormal, etc., it will automatically stop and send an alarm.
