Automatic PE Film Shrink Wrapping Machine


Availability:

Quantity:



Inquire

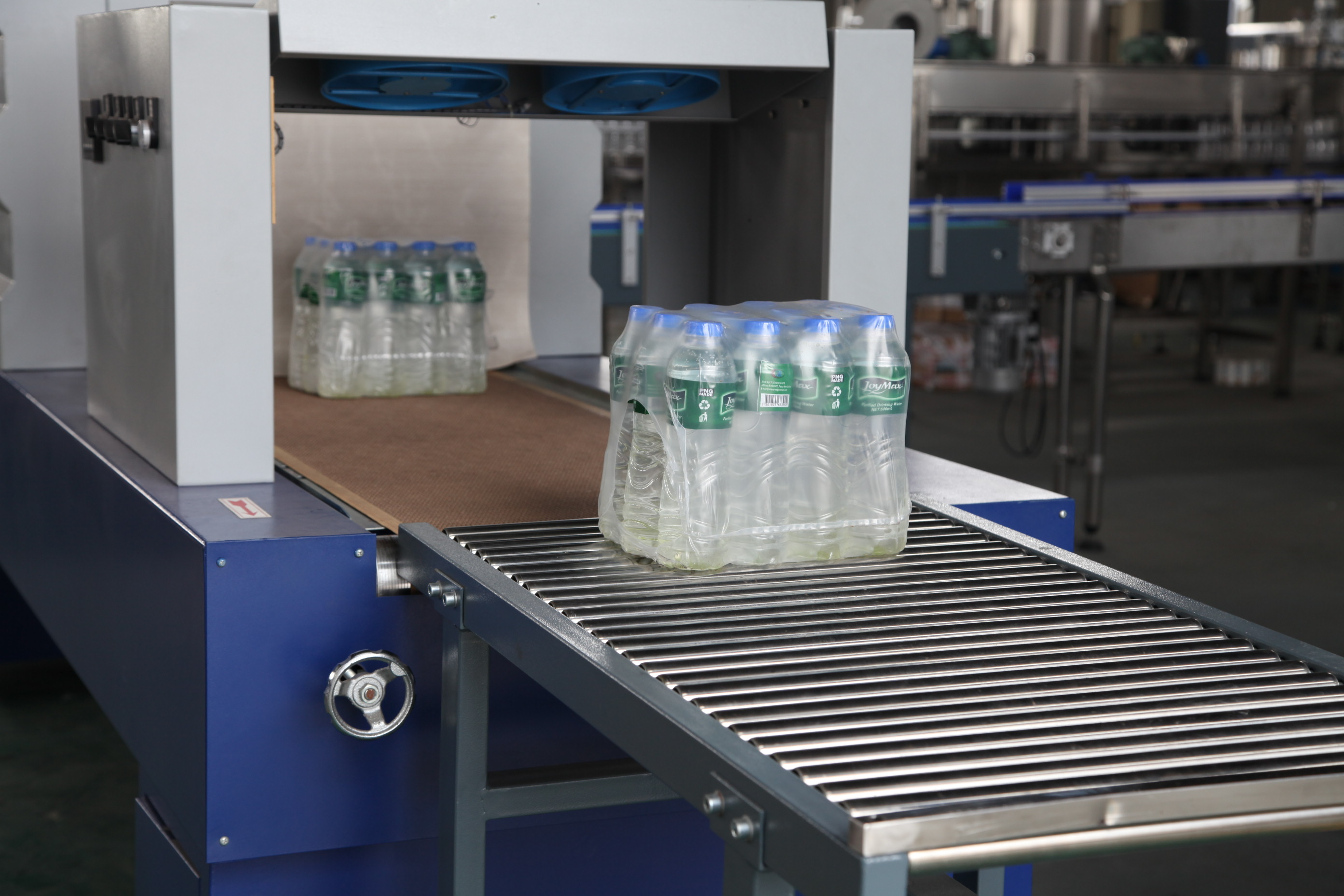

Automatic Film Shrink wrapping machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the Germany advanced technology ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine.

Wrapping Machine Automatic PE Film Shrink Wrapping Machine PE Film Drinking Water Bottle Shrink Packing Wrapping Machine Automatic Heat Shrink Wrapping Machine Heat Tunnel Shrink Wrapping Packing Machine Automatic Flow Packing Wrapping Machine PE Film Heating Shrink Stretch Wrapping Packing Machine Automatic water pet bottle PE film heat tunnel shrink packing machine shrink wrapping machine Automatic PE plastic film sleeve shrink wrapping machine heat shrink tunnel wrap packaging machine PE Film Shrink Packing Machine Shrink Wrapping Machine

Product Description

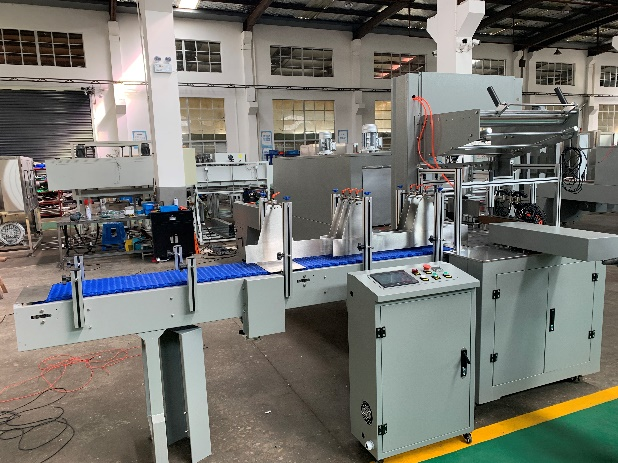

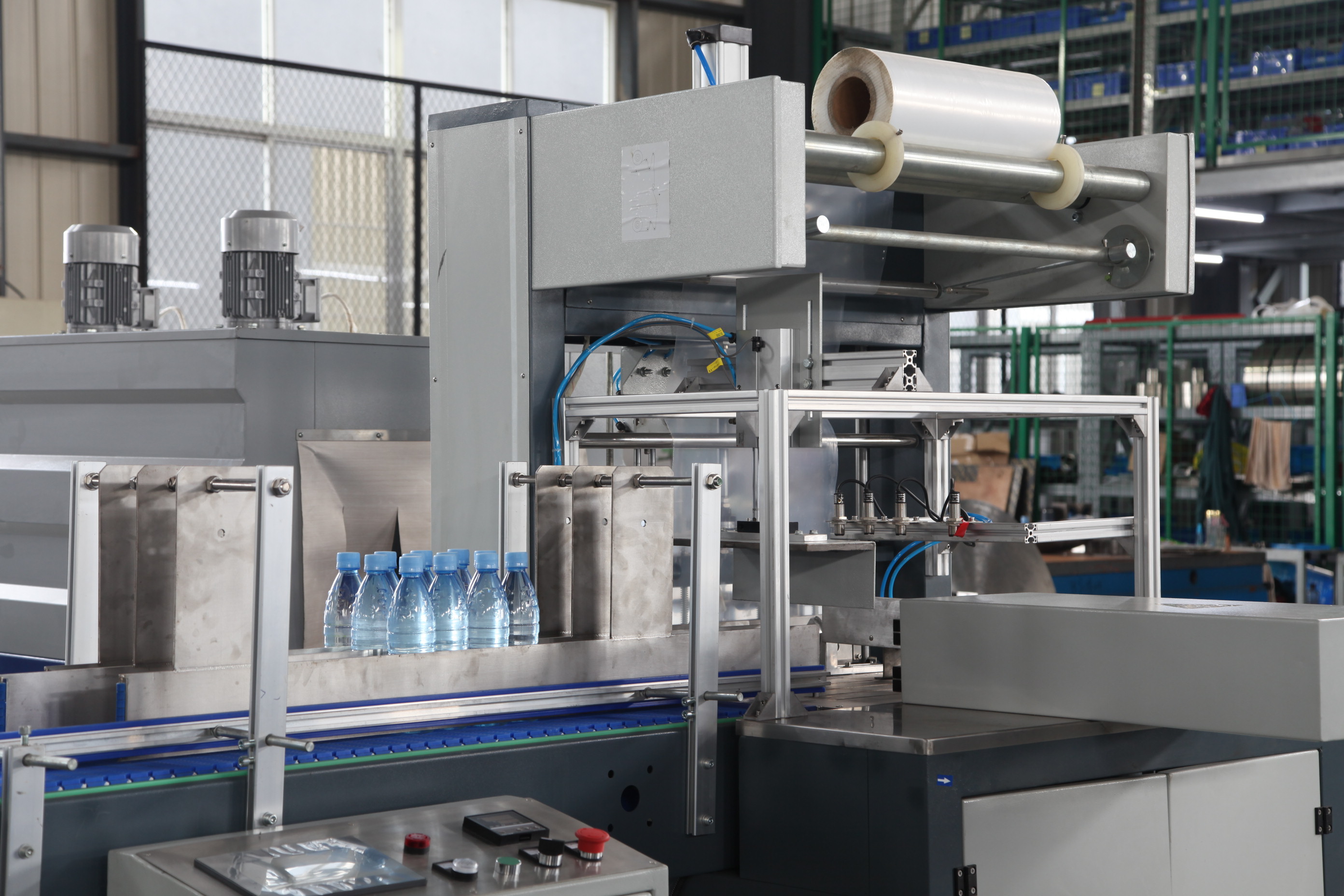

Automatic PE Film Wrapping Machine For Beverage Bottle Packaging

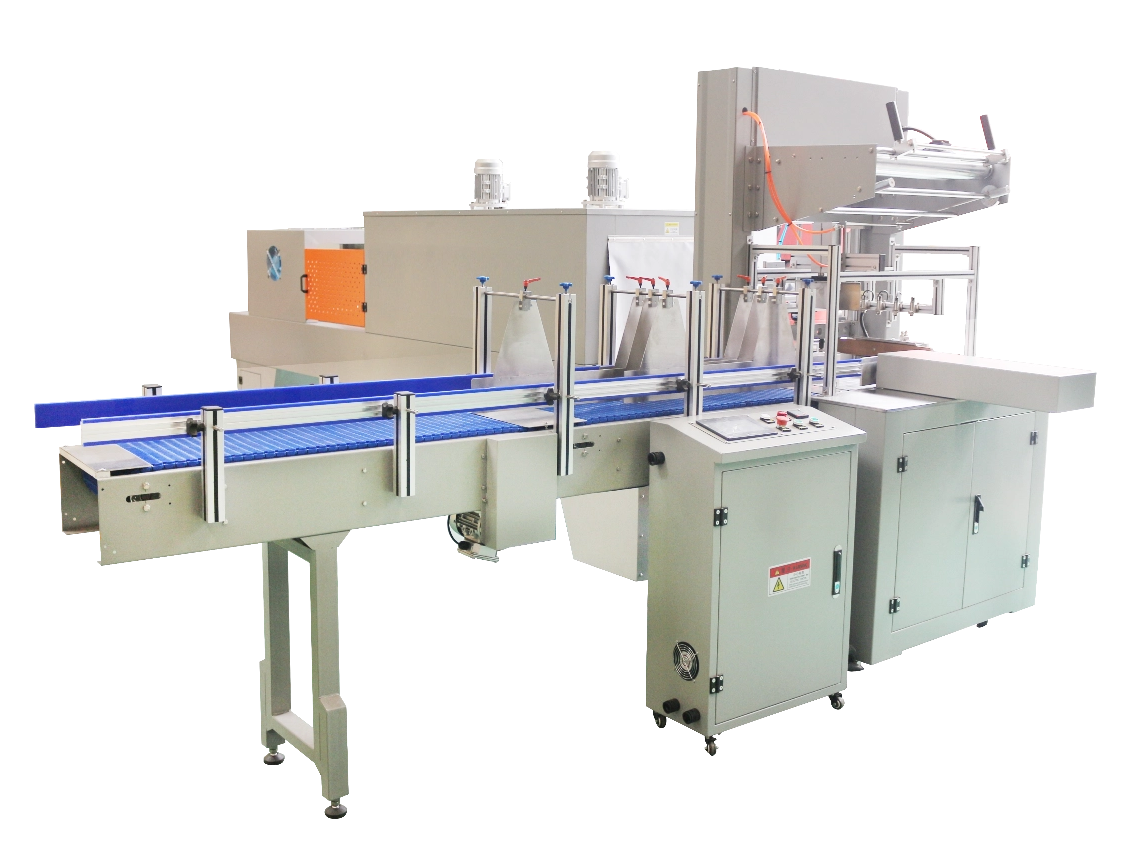

膜包机_1133_849

Applications

* The machine is developed especially for mineral water, beverage, wine, beer, product and soon.
* infusion medicine bottle combination packaging, with stable function, and the packed articles.
* tight and orderliness. It can be handled as a single pushing machine when high speed demanded.

Features

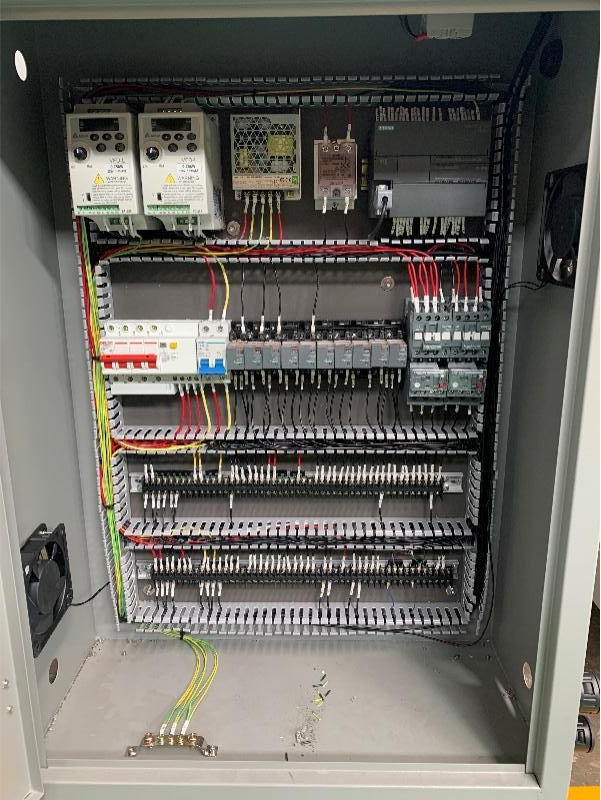

* Applying imported PLC procedure automatic control, stable performance, and accurate control.
* Enjoying full-automatic function of feeding, tube management shrinkage, and cooling shape-fixing flow.
* Film transportation is adopted with sensor switch control, adjustable deliver film length, and can
* reduce wastage.
* Elector motor is adopted with imported transducer to control, realizing unlimited speed regulating.
* Advanced spiral wind circulating structure, three-layer insulation treatment, and energy conservation.
* Reinforced cooling shape-fixing channel to ensure packaging products shape quickly and convenient storage and transportation.

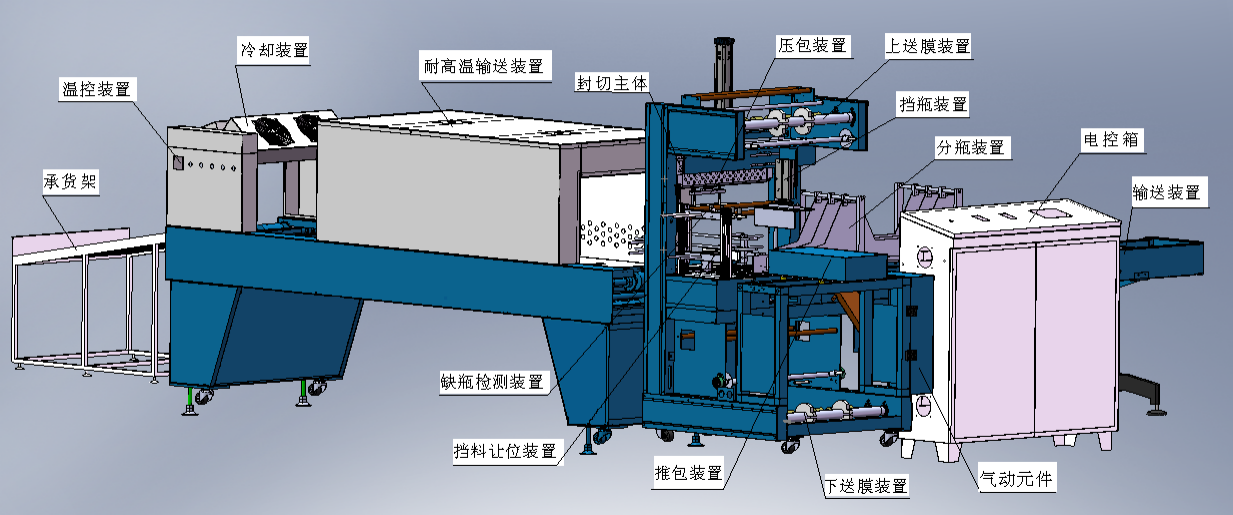

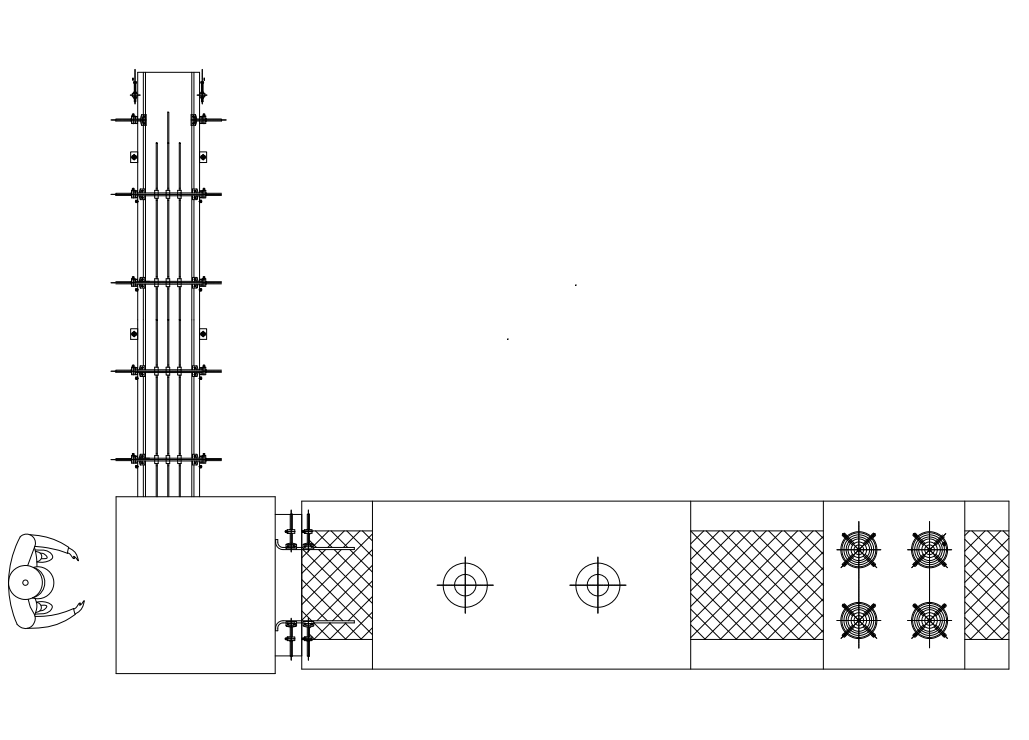

膜包0 膜包00

No.	Item	Technical data
1	Import Power	28KW
2	Import Voltage	∮3, 380/220 VAC
3	Working air pressure	0.6Mpa
4	Matching air compressor requirements	Discharge pressure:0.8Mpa; Flow rate:0.25m3/min
5	Capacity (production speed)	0-8bags per minutes
6	Outline dimension of the equipment (mm)	L5000W3500H2000mm
7	The largest dimension of the wrap-page (mm)	L600W400H350mm
8	The highest temperature of the heat shrink furnace	160-260℃ Can adjust freewill
9	Conveyor Height	950mm±50mm
10	Length of feed conveyor	2500mm
11	Actual power consumption	25Kw/hour
12	Equipment weight	1.6T
13	Film material	PE, PP, PVC, OPF film, Thickness: 0.03mm-0.15mm, Width:200mm-600mm
