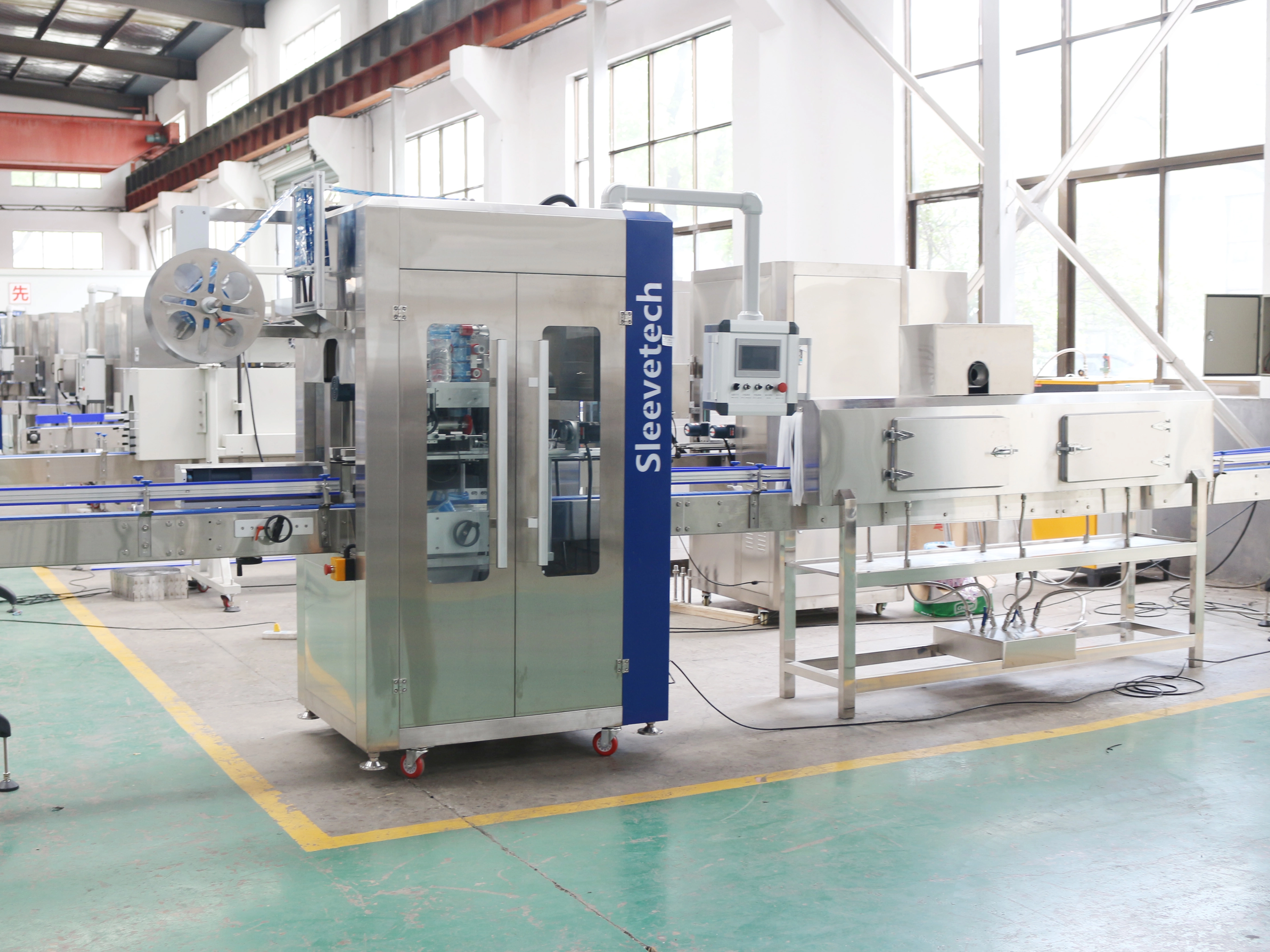

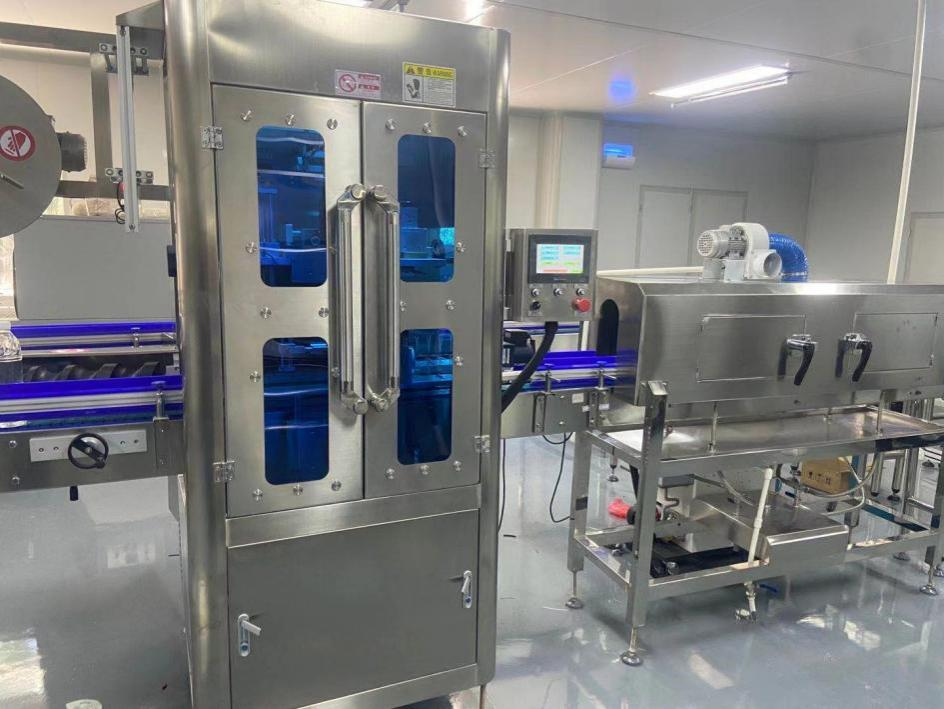

Shrink Label Tunnel PVC Label Sleeve Labeling Sealing Machine
1)Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.
2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.
3) Unit cutter head plane design in China which apply to the container of ∮30 mm-∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
| Size | 2000L*1000W*2000H(mm) | Voltage | 3 Phase 380V AC±5% 50/60HZ |
| Weight | about 500KG | Power | 5.5KW |
| Bottle neck | Ø25 --- Ø55, Ø55--- Ø 90, Ø 90--- Ø110(mm); | Ground protection | Effective grounding more than 2 Square |
| Label length | 30---190(mm) | Power line | 3X4C 4 square meters electric cable |
| Internal diameter: | 5”---10”free adjustable | Protection switch | 380V-3P 25A |
| Speed | Max250B/M (Label height: 55mm speed 0-15000B/H) | Steam tunnel dimension | 1800L*500W*600H (mm) |
| Label thickness: 0.035---0.13(mm) | Label thickness: 0.035---0.13(mm) | Steam tunnel: steam qty | 30KG/H |
| Label materials | PVC, PET, OPS | Steam pressure | ≤0.2Mpa |
This machine uses large quantities of aluminum and high strength,thecorrosin-resistant stainless ateel,so that the overall structure of themachine more durable and it's performance is more modular,.user-friendly design makes the adjustments more easily and changestyle much simpler .Using the man-machine interface in the contro!ststem,which is easy to leam and understand

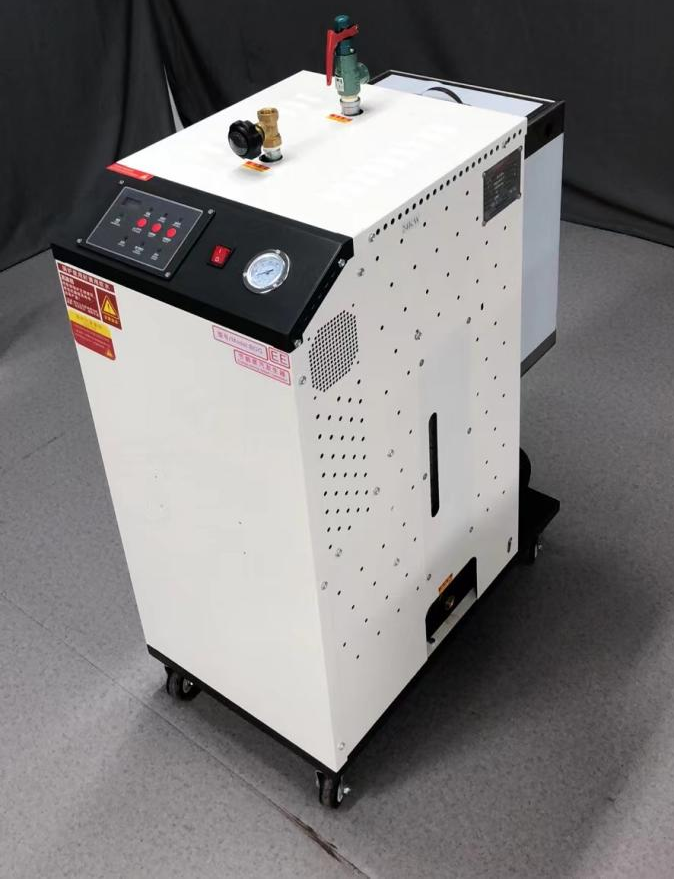

Steam Generator
Steam Pressure: 0.25~0.4Mpa
Power: 18kw
Capacity: 25.8kg/h
Overall Size: 600 mm *720 mm *1320 mm
Weight: 80kg
1)The water is fed into the series of wholly automaticgenerator by high pressure potential vortex pump made olwater-supply time and durable service.
2) A floating ball for liquid level is fixed in the water tank tccontrol the water inlet.
3)Working system is all automatically controlled.Afterwater supply and power supple for 5 minutes or so,it carcontinuously with high working efficiency
