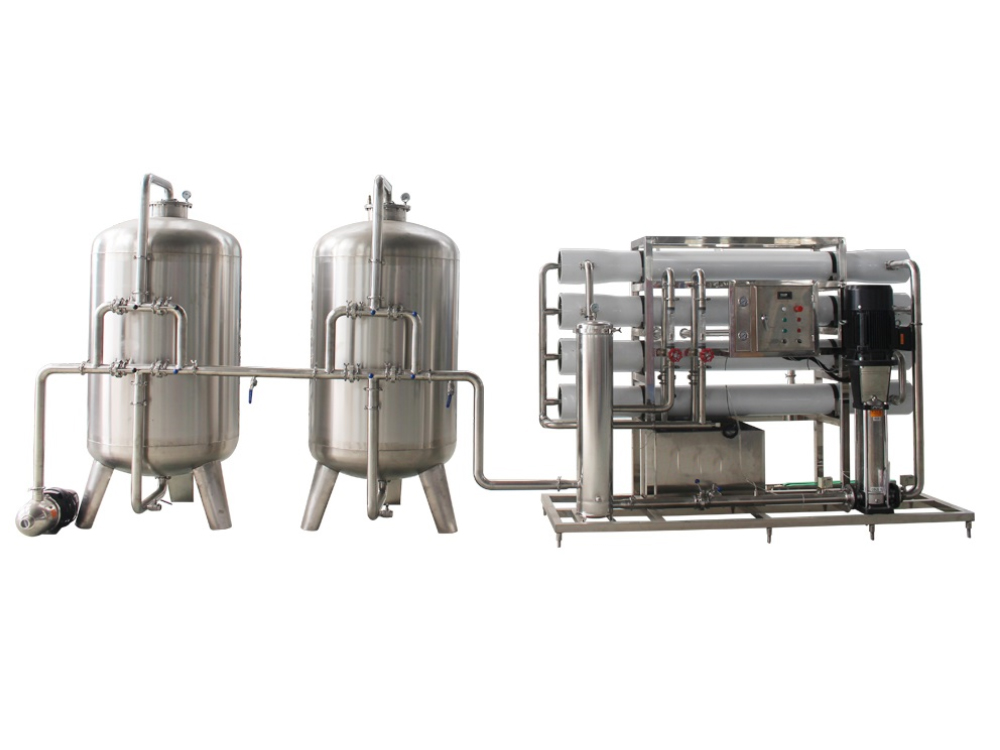

Reverse Osmosis Water Treatment Equipment


Availability:

Quantity:



Inquire

Pre-treatment system is composed of mechanical filter, active carbon filter, Ion Exchanger and precision filter.

RO Water Treatment For Pure Water is for producing drinking water, foods factory, beverage factory, fruit& vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.

It's simply operation and has long lifespan, and can clear away alien color and foreign substance from the water and can remove heavy metal such as Mercury, Lead, Cadmium, Zink, Iron, Manganese, Chromium and Hydrogenate, Sulfide, Residual chlorine and other polymer organic compounds.

Water Treatment System RO Water Treatment Plant Water Treatment Plant Reverse Osmosis Water Treatment Equipment ro water purifier Reverse Osmosis Water Filter RO equipment for water purification Ro Water Plant Machine Water Treatment Purification Machine

General Details

Description

Water purification system can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the raw water resource. It can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh drinking water standards, even standard of healthy mineral water.

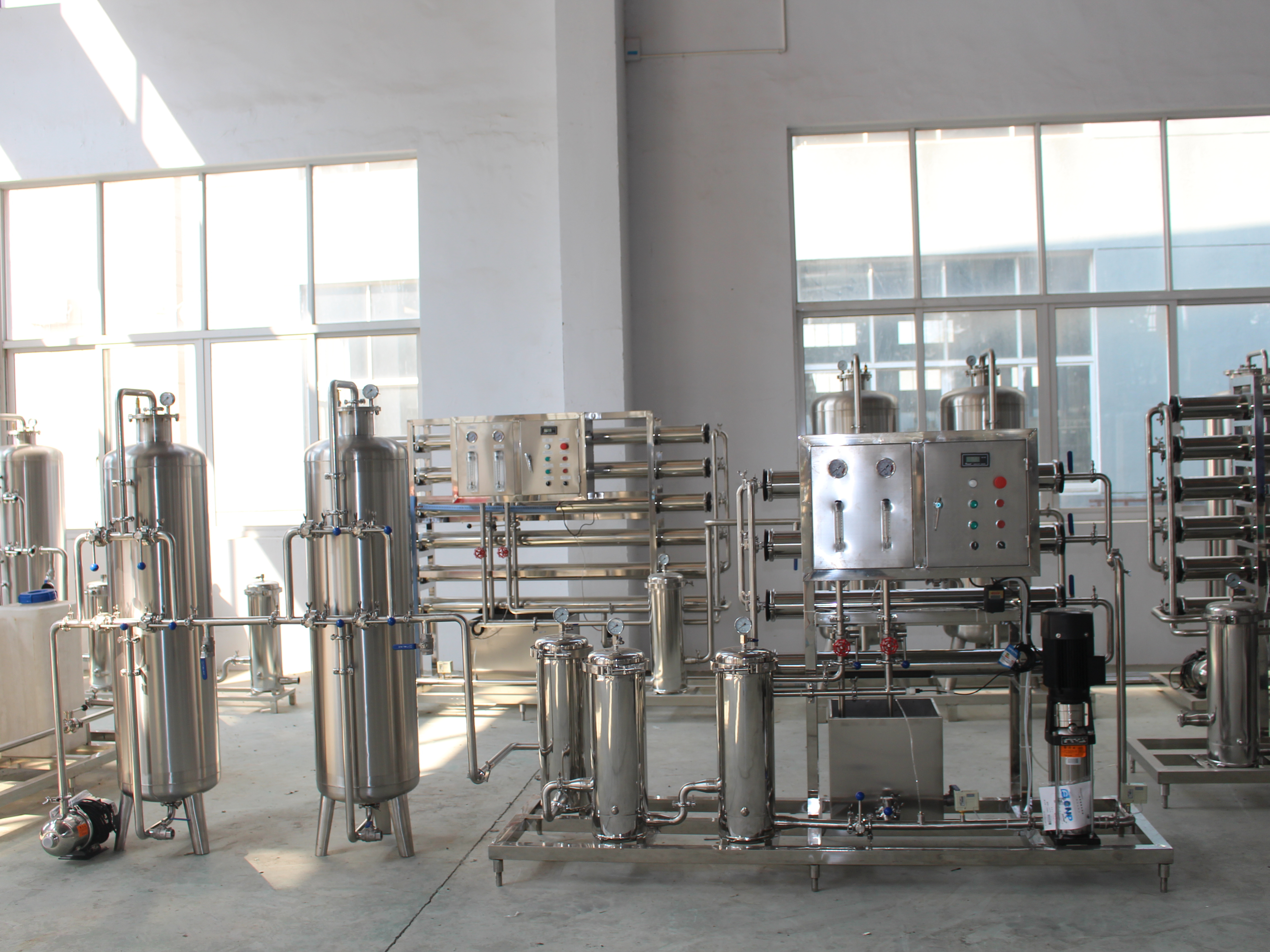

小产量1-10 T (4)

Advantages:

1. Material : Stainless steel SUS304, SUS316 or FRP

2. High automatically, PLC controlled;Imported of high-pressure membrane which come fromUSA. The rate of desalination is reach 97%-98%;

3. Running stable, high desalination and recovery rate;

4. Highly efficient and low energy consumption;

Application：

Reverse osmosis water plant isused to treat raw water to mineral water or pure water to be drinkable for bottle filling.

Specification：

Model		RO-1	RO-2	RO-3	RO-4	RO-5
Raw Pump	Power(KW)	0.55	0.75	1.1	1.5	1.5
Quarz sand filter	Flow rate(M3/H)	2	4	6	8	10
	Tank size(MM)	Φ400 x1850x2	Φ400 x1850x2	Φ600 x2000x3	Φ800 x2100x3	Φ1000 x2900x3
	Quartz sand(kgs)	200	400	600	750	1000
Activated carbon filter	Flow rate(M3/H)	2	4	6	8	10
	Tank size(MM)	Φ400 x1850x2	Φ400 x1850x2	Φ600 x2000x3	Φ800 x2100x3	Φ1000 x2900x3
	Activated carbon(kgs)	100	120	160	220	200
Precision filter	Flow rate(M3/H)	2	4	6	8	10
Precision filter	PP size	5μ	5μ	5μ	5μ	5μ
