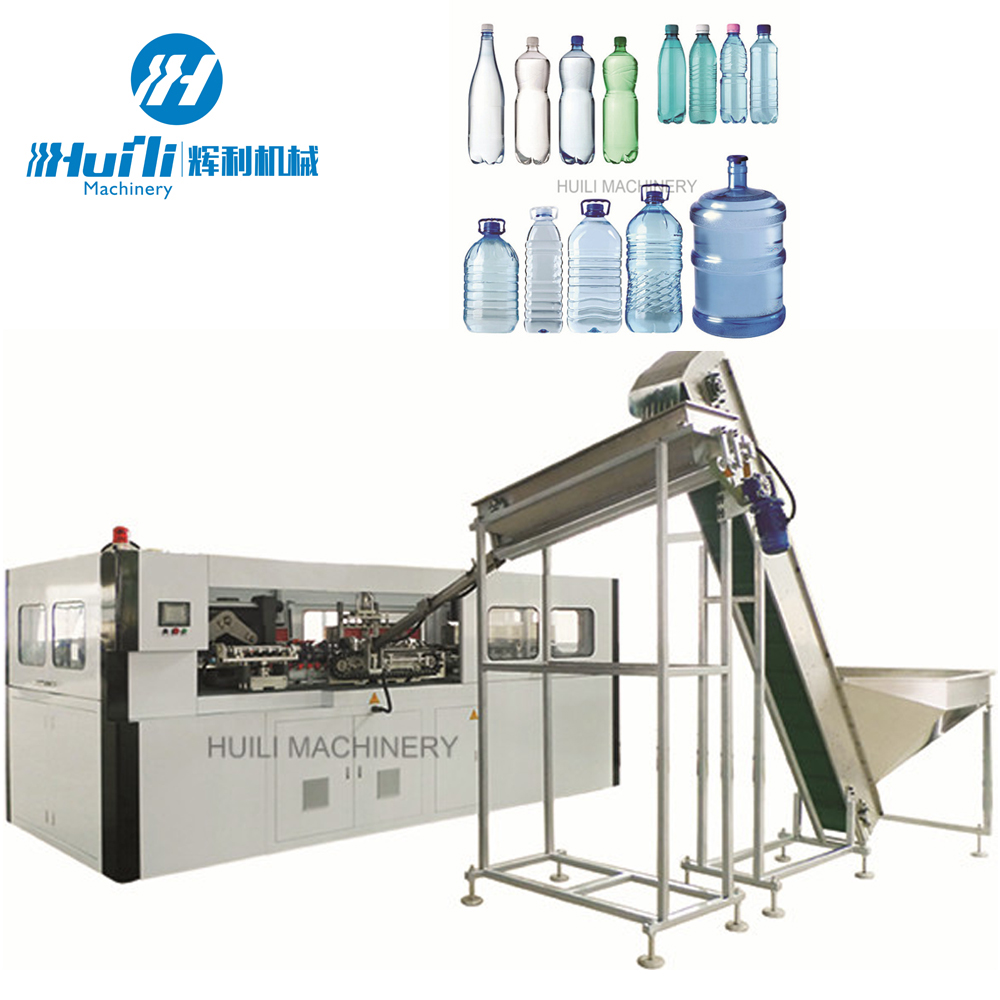

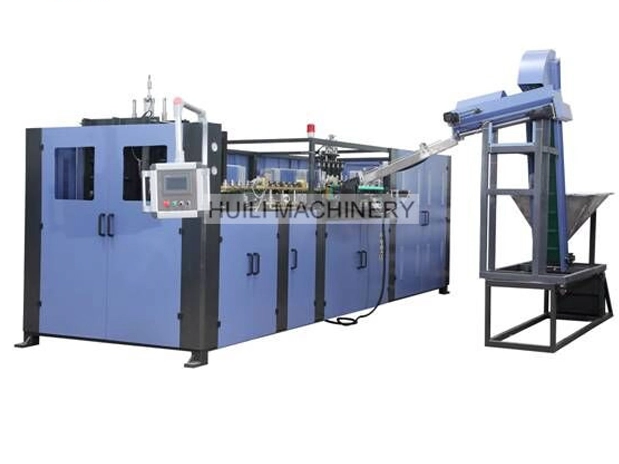

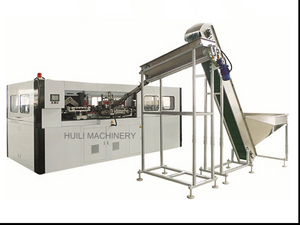

4 Cavity Fully Automatic Pet Plastic Bottle Blowing Blow Molding Machine

 Features:

1. Fully automatic man-machine interface, convenient operation, stable operation of the whole machine, few failures and fast blowing speed.

2.  All parts of the whole machine are made of reasonable materials, precision processed and manufactured, and fine surface treatment.

3. 3. It adopts a rotary continuous preformation mechanism, which has great compatibility with preforms, stable and continuous preformation, fast speed and high efficiency, which overcomes the shortcomings of traditional manipulator intermittent preformation.

4. The preforms in the heating zone are arranged densely, the heating speed is fast, the heating is uniform, and the power is saved.

5. The chain of revolution transmission in the heating zone is imported from Japan Tsubakimoto, which has precise pitch and is durable.

6. The chain of revolution transmission in the heating zone is designed with a mold spring flexible tensioning mechanism to extend the life of the chain.

7. The bottle mouth of the PET bottle blowing machine is equipped with a cold air blowing device, which can more effectively protect the screw mouth of the preform.

8.  The separation mechanism is designed reasonably, and the separation is accurate and reliable.

9. The preform (bottle) conveying mechanism adopts the original imported servo motor and electric positioning system from Germany Festo. The conveying speed of preform (bottle) is fast and the repeat positioning accuracy is high, which overcomes the shortcomings of the traditional pneumatic conveying mechanism.

10. Cylinder type clamping mechanism, strong clamping, stable and reliable operation.

11. Using servo motor to stretch the preform, the stretching speed is fast, the stretching stroke is accurate, and the stretching stroke can be set arbitrarily.

12. The air blowing (exhausting) system adopts the combined valve imported from Festo, Germany, with fast air blowing (exhausting) speed and long service life.

13. The bottle can be directly conveyed to the filling line, the conveying mechanism is novel in design, and the conveying is stable and reliable.

14. Each operating mechanism of the whole machine is equipped with a mutual contraction program to protect the machine.

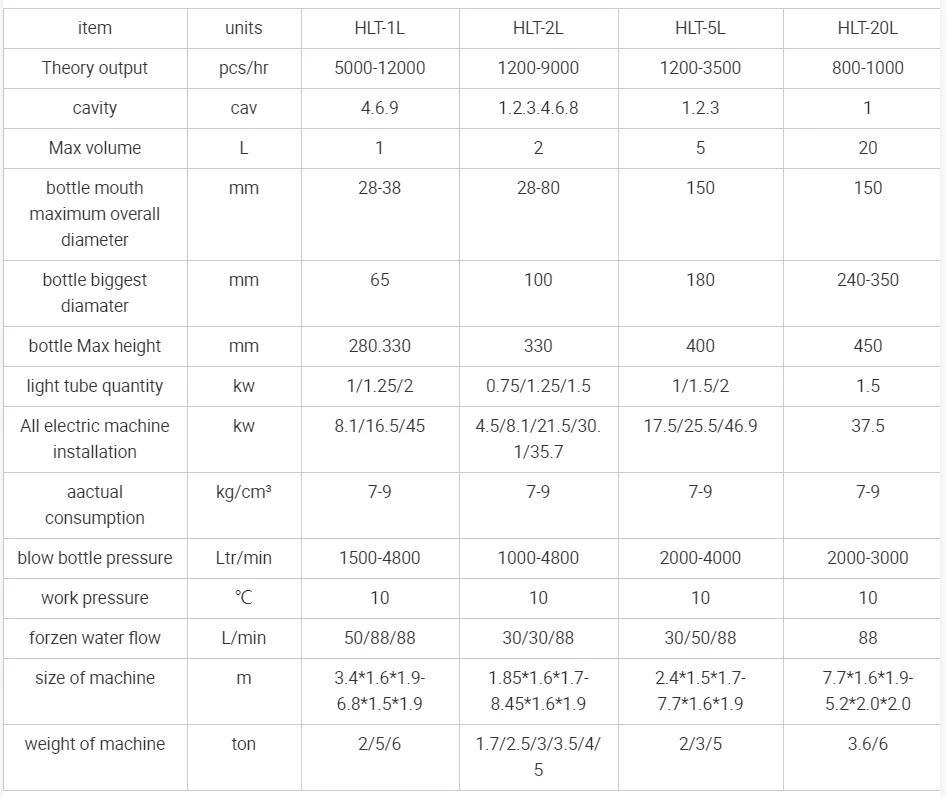

Specification：

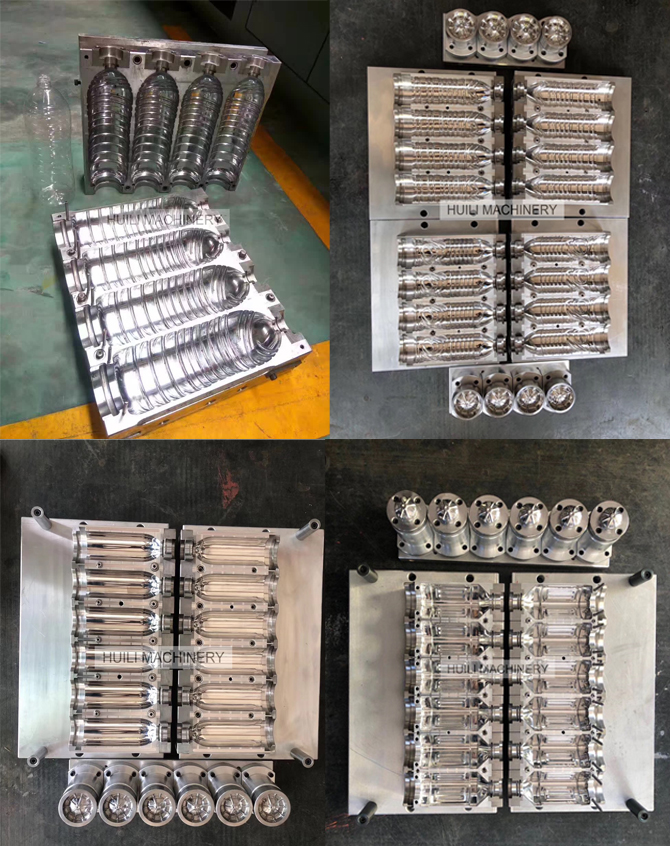

Bottle Mold：
